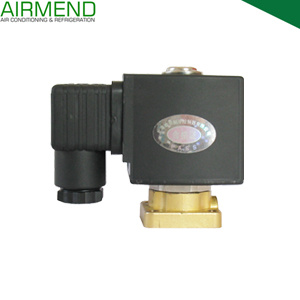

Solenoid Valve (SV-XZ series) Magnetic Valve Electromagnetic Valve China Brand Product for HVAC

Solenoid Valve (SV-XZ series) Magnetic Valve Electromagnetic Valve China Brand Product for HVAC
Price: US $ 25.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T
solenoid valve (SV-XZ series) magnetic valve electromagnetic valve Ambient temperature: -20 ~ 50 Celsius Medium temperature: -25 ~ 120 Celsius Max. working pressure: 3MPa Max. testing pressure: 3.5MPa Available medium: R134a, R22, R407C, R404A/507, air, water and oil Rated power: A.C. : 24V,36V,110V,220V,380V D.C. : 12V,24V,110V,220V Usage 1. The valve must install in horizontal pipe line under vertical position. The flow direction must meet the arrow direction in valve body. 2. The coil input voltage must meet rated input voltage showed on the label. Departure coil from valve when energized in coil is not permitted in order to avoid damage the coil. 3. According to valve with manual function, it must turn manual bar to open the valve before doing system air tightness in order to avoid to damage diaphragm. 4. When brazing the valve with connect tube in system, follow points are very important: a. Before brazing, coil must be departure and use wet fabric cover the valve body to avoid to damage valve part because of high temperature when brazing. b. It must avoid the brazing flame face to valve body. c. It is better to adopt low temperature type silver brazing bar. SV-XZ series discharge solenoid valves, a kind of capacity regulators, are generally installed on the cylinder lid of compressors. SV-XZ series discharge solenoid valves give automatic unloading adjustment of refrigeration compressor according to the capacity of evaporator. It can match the power of compressor with the requirement of refrigeration amount, and also save energy.
Prod Model: SV2XZ4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: AC Solenoid Valve
Application: Household Usage
With more than 7 years experience in cooling and air conditioning industry, Airmend is seeking to continue its way certainly in the aim of providing you the best service. Our most important source of motivation is consciousness and responsibility of our allies' affection and cooperation. In quality of management issue, Airmend group company has acquired ISO 9001 Certificate of Quality Management System. Until right now, we have 2000 square meters plant and 102 employees and sourced a range of Gree golden suppliers. Our products including compressors, fan motors, temperature controllers etc. Have been exported to 23 countries, particular Russia, Middle East and South America. We hope to build mutual trust and contribute to your success!
