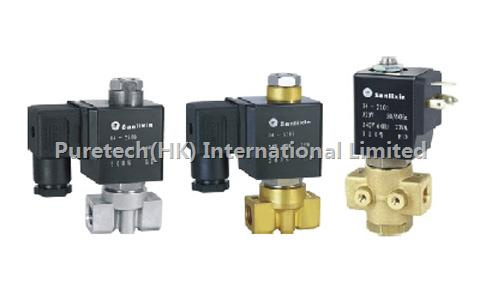

ZS Brass Series 2/2-Way Zero Press Differential Solenoid Valve-Normally Closed.
*2-way normally closed solenoid valve, Closed when de-energized, open when energized.
*Serialized products, small in size, large flow rate, widely use.
*Body material: Forged brass cast brass (for orifice Φ 32, 40, 50only)
*Ambient Temp. 0' C-120' C.
*Flow as the arrow, mounts in any position; Best position isSolenoid vertical and upright direction.
*Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VDC;
*Collcan fix Germany Nass Coil, for orifice under Φ 16-25mm only.
*This series valves are offered NBR, VITON, EPOM etc for Seais and diaphragm to provide on-off control of various fluids.
Part No. |
Pipe
Connection |
orifice
mm |
CV
Factor |
Operating pressure differential (Kgf/cm2) |
Max.
Fluids
Temp. |
Coil |
Power
Consumption |
Extemal Dimensions |
Weight |
Min |
Max |
Air |
Water |
Light oil
≤ 20CST |
F
Class |
VA |
W |
Length× Width× Height |
KG |
|
Gas |
Hot water |
L× W× H |
Type |
AC220V |
DC24V |
|
Liquids |
|
AC |
DC |
AC |
DC |
AC |
DC |
|
SVN1D16 |
1/2" |
16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
69× 57× 106 |
0.9 |
SVE1D16 |
16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
69× 57× 106 |
0.9 |
SVV1D16 |
16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
69× 57× 106 |
0.9 |
SVG1D16 |
16 |
4.8 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
69× 57× 106 |
0.9 |
SVN1E20 |
3/4" |
20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
73× 57× 114 |
1.08 |
SVE1E20 |
20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
73× 57× 114 |
1.08 |
SVV1E20 |
20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
73× 57× 114 |
1.08 |
SVG1E20 |
20 |
7.6 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
73× 57× 114 |
1.08 |
SVN1G25 |
1" |
25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
99× 77× 121 |
1.4 |
SVE1G25 |
25 |
12 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
99× 77× 121 |
1.4 |
SVV1G25 |
25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
99× 77× 121 |
1.4 |
SVG1G25 |
25 |
12 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
99× 77× 121 |
1.4 |
SVN1H32 |
1-1/4" |
32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
20 |
112× 86.5× 150 |
3.4 |
SVE1H32 |
32 |
24 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
70 |
40 |
112× 86.5× 150 |
3.4 |
SVV1H32 |
32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
112× 86.5× 150 |
3.4 |
SVN1J40 |
1-1/2" |
40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
123× 94× 160 |
3.3 |
SVE1J40 |
40 |
29 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
70 |
40 |
123× 94× 160 |
3.3 |
SVV1J40 |
40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
123× 94× 160 |
3.3 |
SVN1K50 |
2" |
50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
168× 123× 183 |
5.4 |
SVE1K50 |
50 |
48 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
70 |
40 |
168× 123× 183 |
5.4 |
SVV1K50 |
50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
168× 123× 183 |
5.4 |
