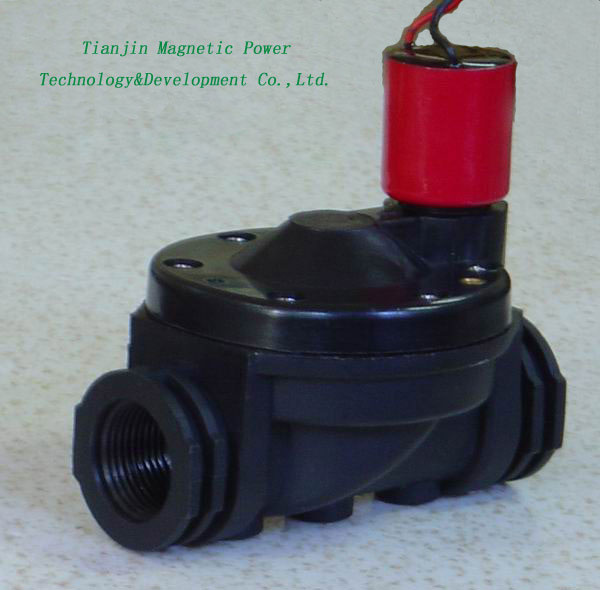

Solenoid valve
1. Construction features: Solenoid valve is made up metal shell, plastic cover, drive wire, iron core, magnet steel, rubber cover and so on.
2. It looks beautiful, modern design, dependable performance, easy to use. Because the iron core used the special materials, so the anti-spticize ability is strong. Salt spray test can arrive at 720 hours. Shell made of epoxy resin. Water-proof ability is very good.
| 3.Paremeter |
| Description of Solenoid Valve |
| Parameter | Two-way DC solenoid valve | | Three-way DC solenoid valve | | | | | |
| | Stable | Unstable | Stable | Unstable | | | | |
| Model | RTZDC-6 | RTZDC-12 | RTDC-12 | RTDC-24 | STZDC-6 | STZDC-12 | STDC-12 | STDC-24 |
| Electric Voltage | 3-6V | 9-12V | 9-12V | 24V | 6V | 6-12V | 12V | 24V |
| Electric |
| Current | 400-850mA | 300-400mA | 250-350mA | 150mA | 850mA | 300-400mA | 250-350mA | 150mA |
| Nominal |
| Power | 5.1W | 4.8W | 4.2W | 3.6W | 5.1W | 4.8W | 4.2W | 3.6W |
| Outer Diameter | 28mm |
| Height | 62mm |
| Length of the leading out wire | 220mm |
| Connect screw thread | 3/4'' |
| Valve body drift diameter | 3/8'' or 1'' |
| Work pressure scope | 0.01-0.8MPa |
| Work temperature | 90 degrees centigrade |
Tianjin Magnetic Power Technology&Development Co., Ltd. specializes in manufacturing various shaped magnets with 15 years of experience. We have been certificated ISO9001, 2000 by BVQi. We wish to create a better future through our advanced technology and excellent staff.
