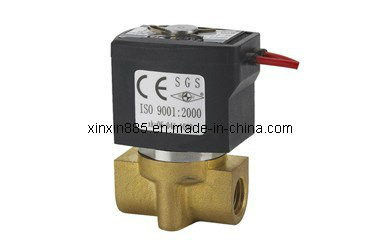

Products Name: RSSM Series Solenoid Valve
Technical Specifications
-- Media: Water, air, vacuum
--Function type: Normally Closed (N/C)
--Temperature: -5 ÷ 100
--Mode of action: Direct acting type
--Body material: Brass
--Protection class: IP65
PARAMETERS
Model RSSM-2
RSSM-3
RSSM-4
G Connection
1/8"
1/4"
1/4"
Orifice Size
mm
2
3
4
Cv Value
0.2
0.4
0.6
L
mm
41
H
mm
63
H1
mm
54
Medium temperature
-5 ~ 100
Pressure
bar
0 ~ 10
Power
AC220/ 50-60HZ 8VA ; DC24V,6.5W Rang: ±10%
