Solenoid Valve

Solenoid Valve
Price: US $ 6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Production Description:

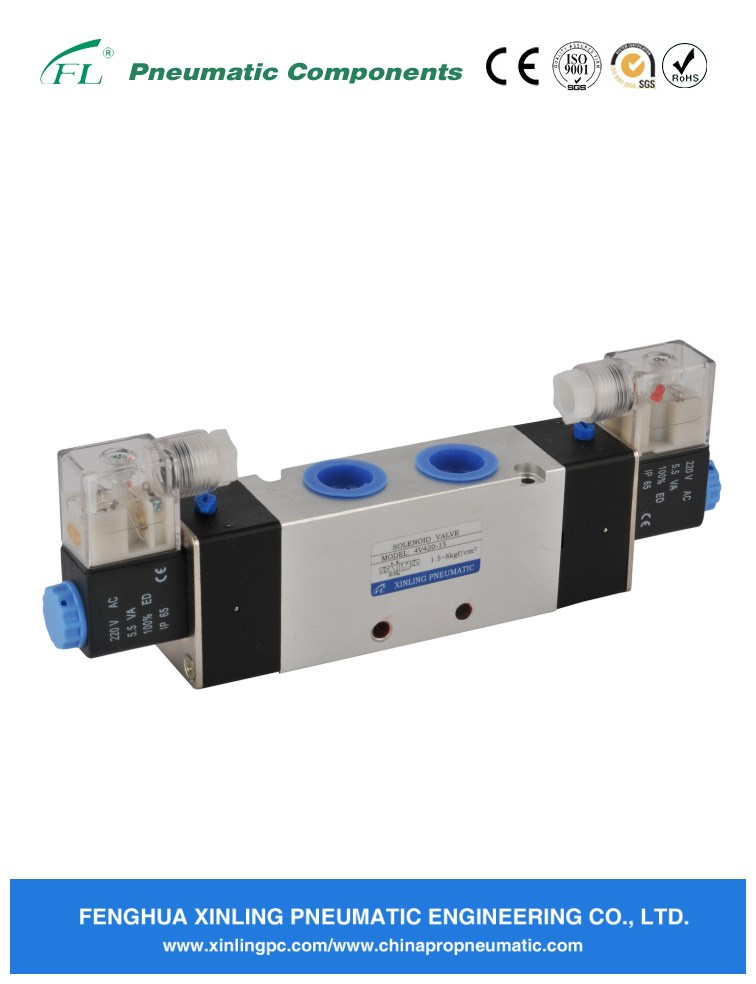

4V Series Solenoid Valves

Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.

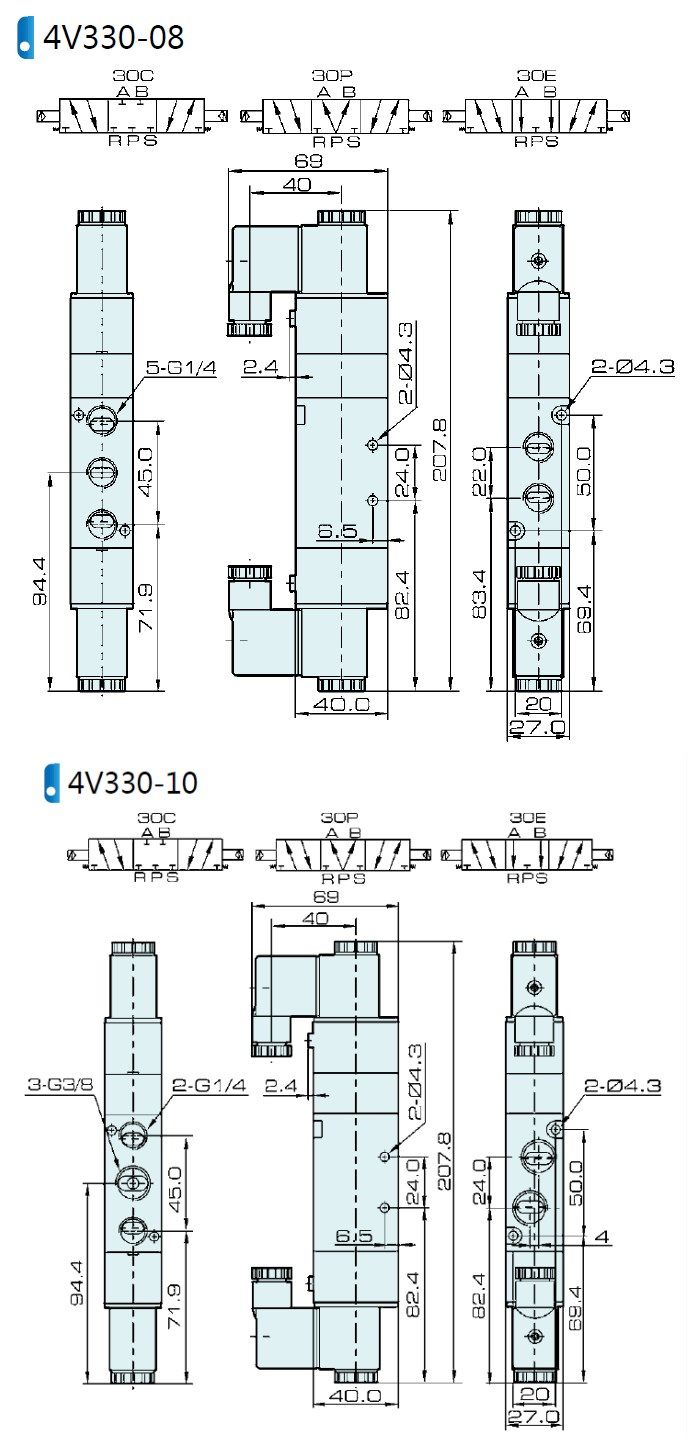

Dimension of 4V Series Solenoid Valves:

Flow Chart of 4V310 Solenoid Valves:

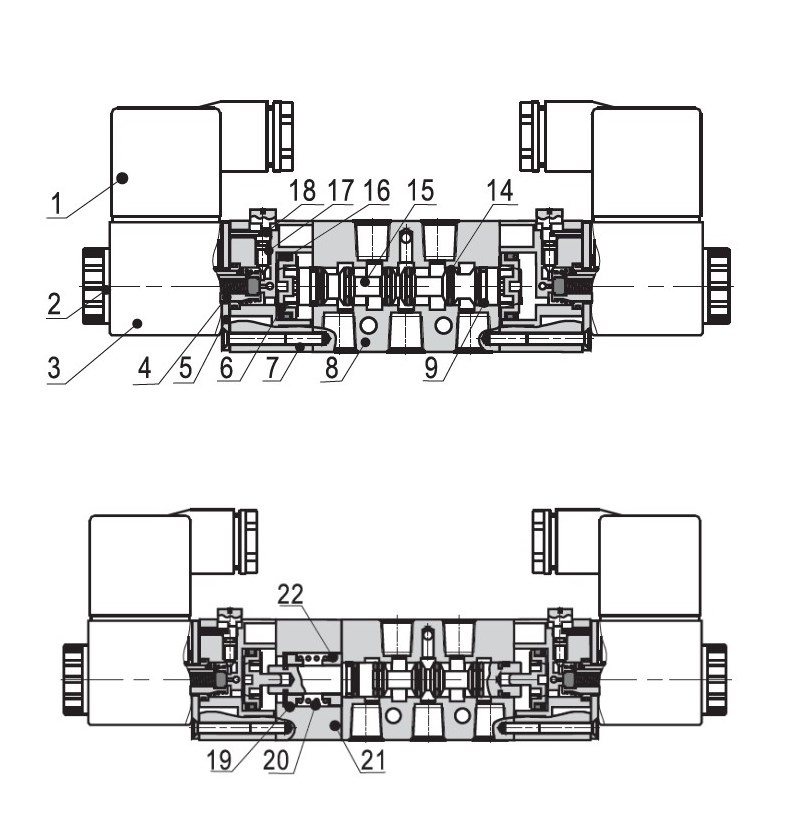

Structure of 4V300 Series Solenoid Valves:

Structure Code:
1Connector12Spool Spring
2Coil Net13Bottom Cover Gasket
3Coil14Spool O-Ring
5Fixed Plate16Piston O-Ring
6Piston17Override Spring
7Pilot Kit18Manual Override
8Body19Spring Holder
9Wear Ring20Return Spring
10Bottom Cover21Side Cover
11Fixed Screw22Spring Holder
Prod Model: 4V Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 4V310/4V320/4V330
Operation Type: Inside Pilot Type
Fluid Medium: 40 Micron Filtered Air
Position And Way Number: Two/Three Position Five Way
Working Pressure: 0.15--0.8MPa(21--114psi)
Proof Pressure: 1.2MPa(174psi)
Working Temperature: 5--50 Degree
Port Size: Air Inlet=Air Outlet=Exhaust=G1/8''
Highest Action Frequency: 5 Cycles/Second
Shortest Excitation Time: 0.05 Second
Type: Direct Acting
Connection Form: Thread
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
Material: Aluminum
