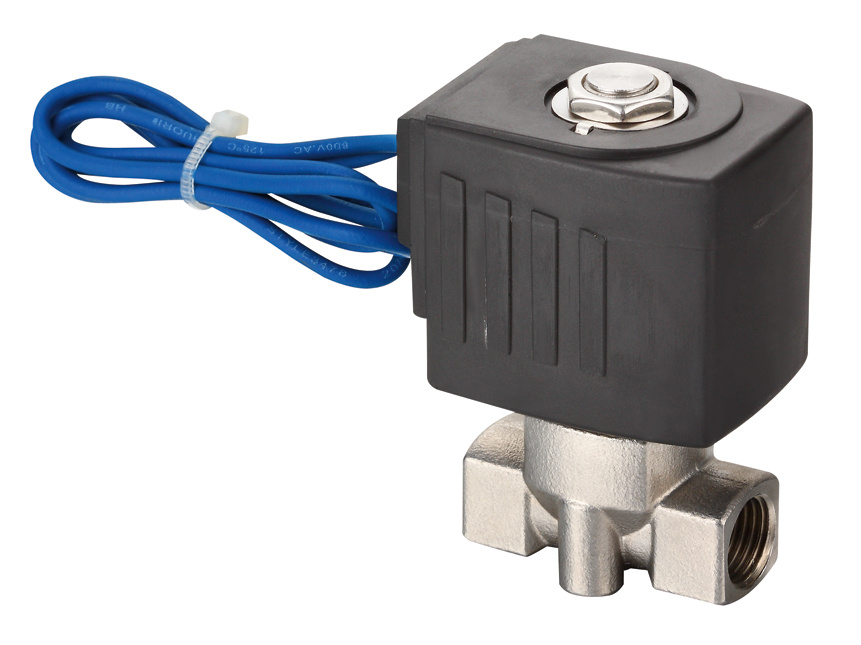

Solenoid Valves -1

Solenoid Valves -1
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: T/T
Operated way: Direct operated
Control way: Nc(standard), no
Pipe size: G1/8~g1/4(standard)
Dn: Dn1~4mm
Pn: The highest pn: 4.0mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80(+180 degree centigrade)
Circumstance temperature: -10~+50degree centigradematerial: Stainless steel
Sealing material: NBR(standard)\FPM\ptee
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
Standard:
Item no.
(2/2WAY)
DN
(mm)
PIPE SIZE
(G)
PN
(MPa)
Kv
(m3/h)
circumstance temperature medium temperature
2231001Cr 1 1/8~1/4 0~4.0 0.02 -10~+50 -10~+80
2231002Cr 2 1/8~1/4 0~2.5 0.08
2231003Cr 3 1/8~1/4 0~1.0 0.16
2231004Cr 4 1/8~1/4 0~0.6 0.16

  Standard:
Item no.
(2/3WAY)
DN
(mm)
PIPE SIZE
(G)
PN
(MPa)
Kv
(m3/h)
circumstance temperature medium temperature
2331001Cr 1.5 1/8~1/4 0~1.6 0.02 -10~+50 -10~+80
2331002Cr 2 1/8~1/4 0~1.0 0.08
2331003Cr 2.5 1/8~1/4 0~0.6 0.16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Company Name: Ningbo Hi-tech District ZhongYi Imp & Exp Co., Ltd

History in Pneumatic: 20 years

Main Products:

A. Pneumatic components, like Pneumatic Cylinder, Solenoid Valves, pneumatic valves, FRLs, Pneumatic fittings and couplers, Hoses, muffler, Mini air compressor, mould, etc.

B. Hydruaulic components, hydraulic cylinders and hydraulic fittings, etc.

C. Metal and plastic parts

D. Hardware and fasteners

E: Home appliance

Total Staff: About 200, including 2 exporting sales, 5 technical

Engineers.

Workshop Area: 2300square meters

Management System: ISO9001. ISO2000.

Advantage: Strong Technical design ability, Stable quality, and large production capability

Honor: NO. 1 pneumatic manufacturer and exportor in Chinese pneumatic field.

We're sure with both our hard work we'll enjoy common successful future in your local market.
