| 4V | 1 | 10 - | 06 | B | AC220V |
| | | | | ||||
|
Specification Code 4V: Two(Three)-position Five-way Solenoid Valve |
Series Code: 100 Series |
Coil and Places 10: Single-head Double- position 20: Double-head Double-position 30C: Double-head Three-position Close Type 30E: Double-head Three-Position Exhaust Type 30P: Double-head Three-Position Pressure Type |
Joint Pipe Bore: M5: M5x0.8 06: G1/8 |
Joint PiPe form Blank: Pipe Connection Type B: Plate Connection Type |
Standard Voltage DC12V DC24V AC24V 50Hz/60Hz AC110V 50Hz/60Hz AC220V 50Hz/60Hz AC380V 50Hz/60Hz |

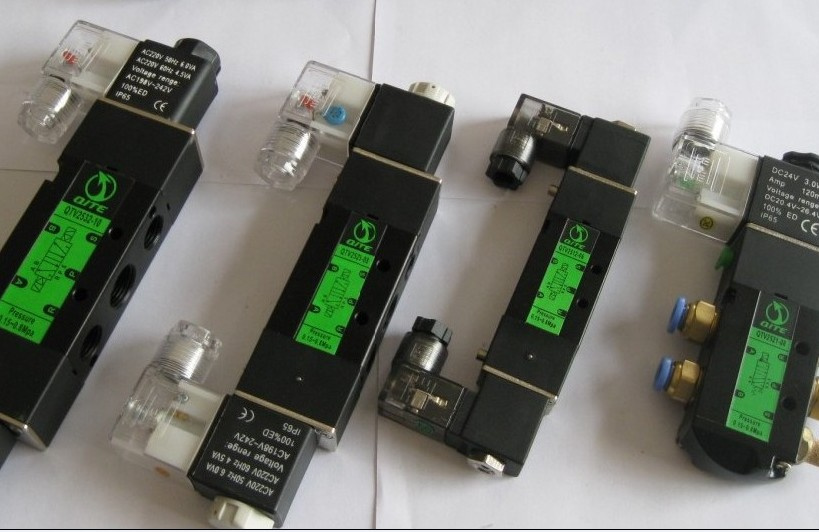

| 4v100 solenoid valves Specifications | |||||
| Model | 4V110-05 4v110-06 | 4v120-05 4v120-06 | 4v130C-05 4v130C-06 | 4v130E-05 4V130E-06 | 4V130P-05 4V130P-06 |
| Medium | Air (Be filter by 40μ colander) | ||||
| Effective area | M5: 5.5mm² (Cv=0.31) 06: 12mm² (Cv=0.67) | M5: 5mm² (Cv=0.28) 06: 9mm² (Cv=0.50) | |||
| Position number | 5/2 way | 5/3 way | |||
| Interface diameter | M5: IN=OUT=Exhaust=M5 06: IN=OUT=Exhaust=PT1/8 | ||||
| lubrication | Non-Lubricate | ||||
| pressure | 1.5~8 Kgf/cm² (21~114 Psi) | ||||
| Max pressure | 12.0Kg/cm² (170.6Psi) | ||||
| Working temperature | -5~60 degree Celsius(-41~140 ° F ) | ||||
| Voltage range | ± 10% | ||||
| Power consumption | AC220V: 3VA. DC24V: 2.5W | ||||
| insulation | F Class | ||||
| Protect grade | IP65 (DIN 40050) | ||||
| Connect electric way | Socket weith plug | ||||
| Supreme action frequency | 5 Cucle/sec | 3 Cucle/sec | |||
| Shortest magnetic time | 0.05sec | ||||
| Standard voltage | DC12V\ DC24V\ AC24V\ AC36V\ AC110V\ AC220V\ AC380V | ||||
| 4V200 series solenoid valves Specifications | |||||
| Model | 4V210-06 4v210-08 | 4v220-06 4v220-08 | 4v230C-06 4v230C-08 | 4v230E-06 4V230E-08 | 4V230P-06 4V230P-08 |
| Medium | Air (Be filter by 40μ colander) | ||||
| Effective area | 06: 14mm² (Cv=0.78) 08: 16mm² (Cv=0.89) | 06: 12mm² (Cv=0.67) 08: 12mm² (Cv=0.67) | |||
| Position number | 5/2 way | 5/3 way | |||
| Interface diameter | 06: IN=OUT=Exhaust=PT1/8 06: IN=OUT=PT1/4 Exhaust=PT1/8 | ||||
| lubrication | Non-Lubricate | ||||
| pressure | 1.5~8 Kgf/cm² (21~114 Psi) | ||||
| Max pressure | 12.0Kg/cm² (170.6Psi) | ||||
| Working temperature | -5~60degree Celsius(-41~140° F) | ||||
| Voltage range | ± 10% | ||||
| Power consumption | AC220V: 2VA. \AC110: 2.5VA\DC24V: 3W\DC12V: 2.5W | ||||
| insulation | F Class | ||||
| Protect grade | IP65 (DIN 40050) | ||||
| Connect electric way | Socket weith plug | ||||
| Supreme action frequency | 5 Cucle/sec | 3 Cucle/sec | |||
| Shortest magnetic time | 0.05sec | ||||
| Standard voltage | DC12V\ DC24V\ AC24V\ AC36V\ AC110V\ AC220V\ AC380V | ||||
| Prod Model: | 4V110 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: | Thread |
| Type: | Direct Acting |
| Power Supply: | AC and DC |
