Spring Loaded Low Lif T Type Safety Valve (A27H)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
A27H type are used for the equipment and pipeline of water, air, steam etc. Medium what the working temperature are less than 200. A27Y type are used for the equipment and pipeline of the quality with corrode me-dium what the working tempe-rature are less than 200. Take for extra pressure devices
|

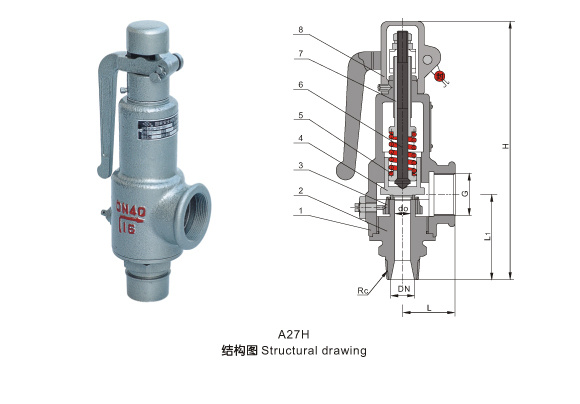

Explanation of materials for main parts |
|
NO. |
Name of part |
A27H Materials |
A27W-P Materials |
A27W-R Materials |
|
1 |
Body |
HT350 |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
|
2 |
Nozzle |
35 |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
|
3 |
Adjusting ring |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
4 |
Disc |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
5 |
Spring |
50CrVA |
50CrVA Coated Teflon |
50CrVA Coated Teflon |
|
6 |
Stem |
2Cr13 |
2Cr13 |
1Cr18Ni9Ti |
|
7 |
Adjusting bolt |
45 |
2Cr13 |
1Cr18Ni9Ti |
|
8 |
Cap |
ZG200-400 |
ZG200-400 |
1Cr18Ni9Ti |
|
|
Sealing surface of material |
D507 Depositing D507 |
Co Depositing stellite |
|
10 |
Adjusting nut |
Q235-A |
2Cr13 |
1Cr18Ni12Mo2Ti |
|
|
Sealing surface of material |
"Y" Co Depositing stellite, "H" D507 Depositing D507, "W" body |
|
Dimensions (mm) |
Nominal diameter
DN (mm) |
Dimensions (mm) |
|
do |
Rc |
L |
L 1 |
G |
H |
|
15 |
10 |
1/2" |
40 |
65 |
1/2" |
135 |
|
20 |
15 |
3/4" |
45 |
70 |
3/4" |
140 |
|
25 |
20 |
1" |
45 |
76 |
1" |
155 |
|
32 |
25 |
1 1 / " |
55 |
85 |
1 1 / " |
170 |
|
40 |
32 |
1 1 / " |
55 |
85 |
1 1 / " |
310 |
|
50 |
40 |
2" |
67 |
100 |
2" |
322 |
|
65 |
50 |
2 1 / " |
76 |
112 |
2 1 / " |
344 |
|
80 |
65 |
3" |
110 |
135 |
3" |
395 |
| Prod Model: |
A27H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Type |
