Spring Loaded Low Lif T Type Safety Valve (A61Y)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Spring Loaded Low Lift Type Safety Valve (A61Y) A61 -160, A61 -320 type are used for the equipment and pipeline of the air, ammonia, petr-oleum gas etc. Medium what the working temperature are less than 200, A61Y-160P, A61Y-320P type are used for the equipment and pi-
Peline of the quality with corrode gas and liquid medium what the working temperature are lessthan 200. Take for extra pressureprotection devices.

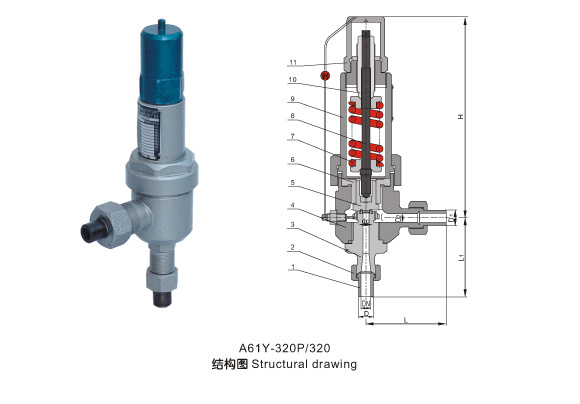

| Explanation of materials for main parts |
| NO. | Name of part | A61H-C A61Y-C Materials | A61Y-P Materials |
| 1 | Union | 20 | 1Cr18Ni9Ti |
| 2 | Union nut | 35 | 1Cr18Ni9Ti |
| 3 | Nozzle | 2Cr13 | 1Cr18Ni9Ti |
| 4 | Body | 35/35CrMoA | 1Cr18Ni9Ti |
| 5 | Disc | 2Cr13 | 1Cr18Ni9Ti |
| 6 | Guide | 2Cr13 | 1Cr18Ni9Ti |
| 7 | Spring | 50CrVA | 50CrVA Coated Teflon |
| 8 | Stem | 2Cr13 | 2Cr13 |
| 9 | Bonnet | ZG230-450 | 1Cr18Ni9Ti |
| 10 | Adjusting bolt | 45 | 2Cr13 |
| 11 | Cap | ZG200-400 | 1Cr18Ni9Ti |
| Sealing surface of material | "Y" Co Depositing stellite, "H" D507 Depositing D507 |
| Dimensions (mm) |
Nominal pressure
PN(MPa) | Nominal diameter
DN(mm) | Dimensions |
| do | D | D 1 | D 2 | L | L 1 | H |
| 16 | 10 | 6 | 17 | 14 | 12 | 115 | 135 | 78 |
| 15 | 8 | 22 | 18 | 16 | 115 | 135 | 85 |
| 20 | 10 | 28 | 22 | 20 | 115 | 135 | 135 |
| 25 | 12 | 35 | 26 | 24 | 160 | 165 | 142 |
| 32 | 10 | 6 | 22 | 14 | 12 | 115 | 135 | 80 |
| 15 | 8 | 25 | 17 | 15 | 115 | 135 | 90 |
| 20 | 10 | 30 | 22 | 20 | 115 | 135 | 140 |
| 25 | 12 | 38 | 26 | 24 | 160 | 165 | 148 |
| Prod Model: |
A61Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Type |
