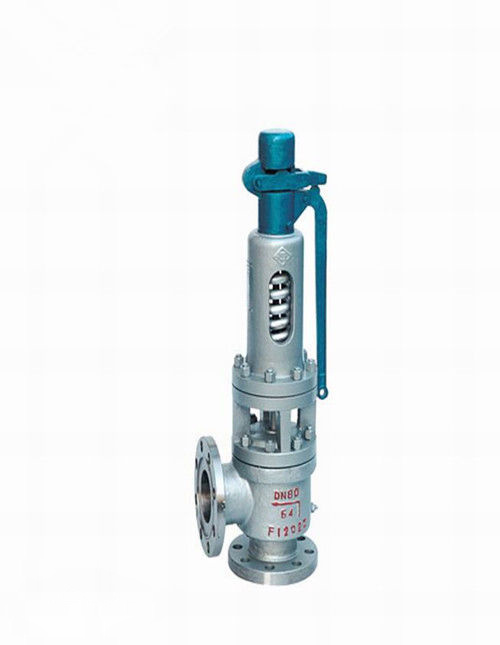

Spring micro open type safety valve is the use of a compression spring force to balance the role of the force on the valve. Compression ring shaped spiral spring can be adjusted by adjusting the rotation of the nut on top of it, with this structure can according to need to correct the safety valve opening pressure (set). Spring micro open type safety valve structure compact, the sensitivity is relatively high, the installation location is not restricted, but also because of the sensitivity of the vibration is small, so it can be used for pressure vessel moving on. The disadvantage of this safety valve is the increase of load with the valve open and will change, namely as the valve increases, the amount of compression spring increases, role of the force on the valve will also increase. This is detrimental to safety valve open. In addition, the spring valve on the elasticity decreases due to the long-term high temperature affected. Container for high temperature, often have to consider heat or heat of the spring, so that the structure becomes complicated.
The safety valve in the system play the role of security protection. When the system pressure exceeds the set value, the safety valve open, part of the system in the gas / fluid into the atmosphere / pipeline, the system pressure does not exceed the allowable value, thus ensuring the system is not an accident due to excessive pressure.
The safety valve before the factory, should be the setting value by Taiwan to adjust the opening pressure to the user's requirements. If the user make the spring working pressure level, according to the general should be according to the lower limit value of the pressure level adjustment of the factory.
In the users will be protected safety valve installed on the device before or during installation, you must re adjusted at the installation site to ensure the safety valve set pressure value to meet the requirements.
In the nameplate indicating the spring working pressure level range, by rotating the adjustment screw to change the amount of spring compression, you can adjust the pressure on the opening.
And before the rotation adjustment screw, valve inlet pressure should be reduced to open the pressure below 90%, to prevent the rotation adjustment screw to be driven when the disc rotation, which damage the sealing surface.
And in order to ensure the accurate value of opening pressure, should make adjustments in the medium conditions, such as medium type, temperature as close as possible the actual operating conditions. Media types to change, especially when the state does not accumulate while the media (such as from a liquid to a vapor), open the pressure changes often. Temperature increases, the opening pressure is generally decreased. The adjustment for high temperature at room temperature, room temperature setting of the pressure value should be slightly higher than the required opening pressure value. To what extent the high structural and material selection and the valve has a relationship, should be based on the manufacturer's instructions.
The conventional safety valve for a fixed additional back pressure of the occasion, when adjusting the opening pressure in the inspection after (when back pressure is atmospheric pressure), the setting value should be value minus the value of additional back pressure pressure is required to open.
