Ss Ball Valve 150lb Flange Ends

Ss Ball Valve 150lb Flange Ends
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union

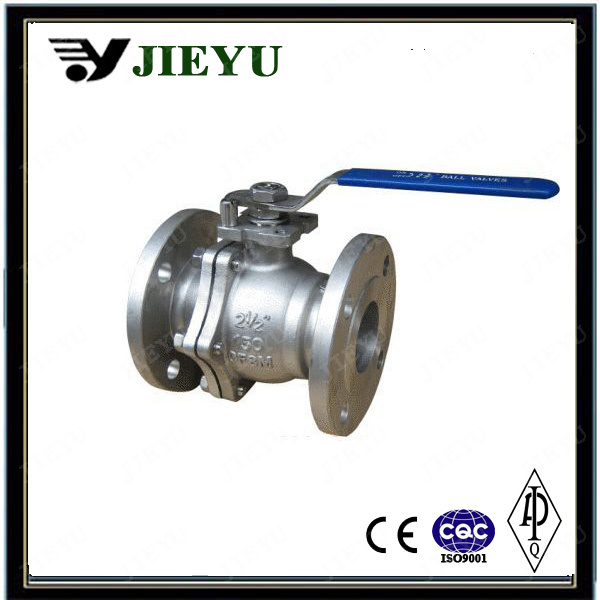

SS Ball Valve 150LB Flange ends



Specification:
Size:1/2"-24"
Model:Q41F/Q341F
Pressure:150Lb-1500Lb
Applicable Medium:  steam, water,  oil,etc
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Ball Material: Carbon steel A105, A105+ENP, Stainless steel SS201,SS304,SS316, SS316L
Operation: Lockable Handle Lever, worm, electric, pneumatic

Full port ( FP) or Regular Bore (RB), Two piece Split body or Three piece bolted body, Floating ball type or Trunnion Mounted type, Blow-out Proof Stem, Anti-staic, optional Locking Device or stem Extension, optional Direct Mounting to ISO 5211

Standard:
Design and Manufacture: API 6D, ASME B16.34
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA

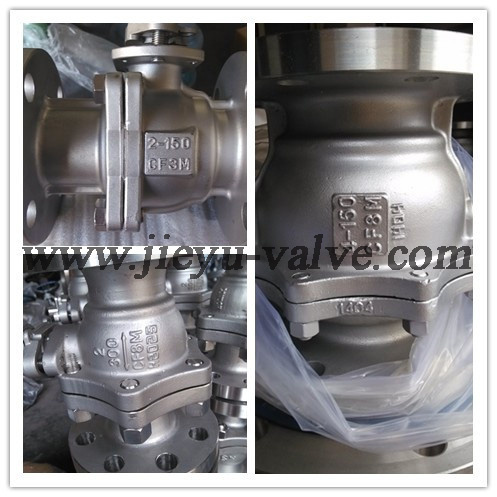

Products:

Production Flow:

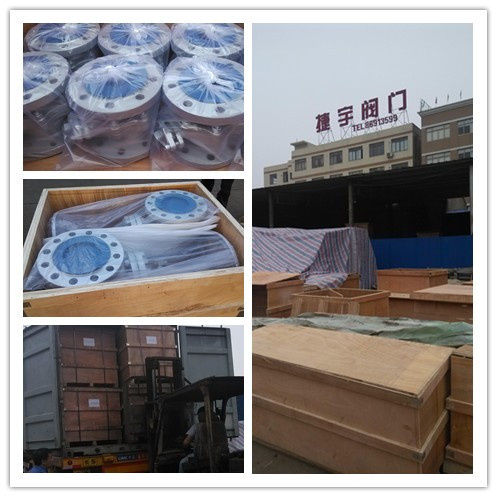

Packaging:

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details: Plywood or as The Customers' Requirement.
Delivery Detail: Depend on The Quantity
Painting: Slivery or as The Customer's Requirements
Cetificates: API ISO CE Ts
OEM: Available
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Application: Household Usage
Structure: Floating and Fixed Ball
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
