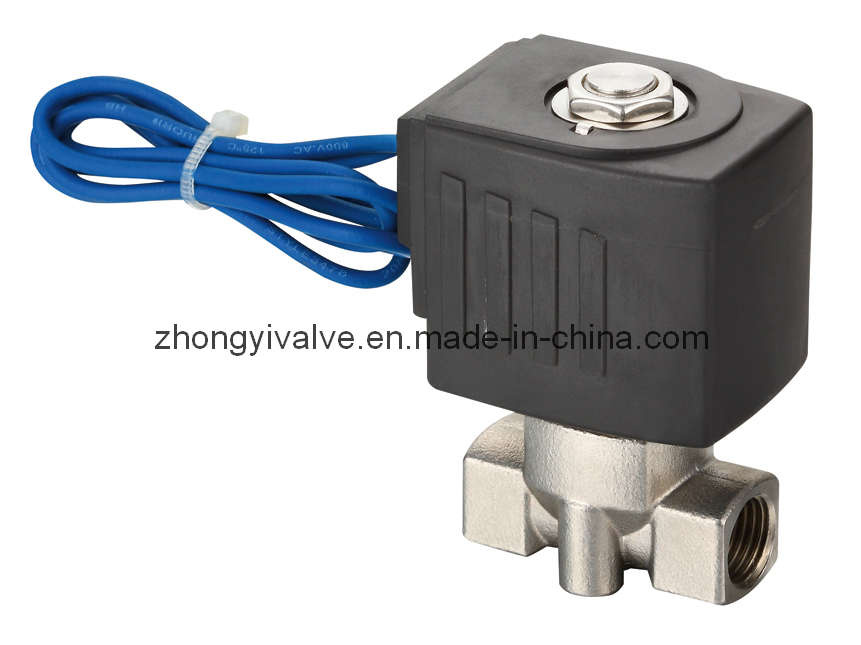

Operated way: Direct operated
Control way: Nc(standard)
Pipe size: G1/4(standard)
Dn: Dn1~4mm
Pn: The highest pn: 4.0mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80(+180)
Circumstance temperature: -10~+50
Material: Brass or stainless steel
Sealing material: NBR(standard)\FPM\ptee
Standard voltage: AC: 220V(50/60Hz)
DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight.
Standard: |
Item no. (2/2WAY) |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
Kv
(m3/h) |
circumstance temperature |
medium temperature |
BRASSMATERIAL |
STAINLESS STEELMATERIAL |
QJV2A-01 |
QJV2A-01Cr |
1 |
1/4 |
0~4.0 |
0.02 |
-10~+50 |
-10~+80 |
QJV2A-02 |
QJV2A-02Cr |
2 |
1/4 |
0~2.5 |
0.08 |
QJV2A-03 |
QJV2A-03Cr |
3 |
1/4 |
0~1.0 |
0.16 |
QJV2A-04 |
QJV2A-04Cr |
4 |
1/4 |
0~0.6 |
0.16 |
