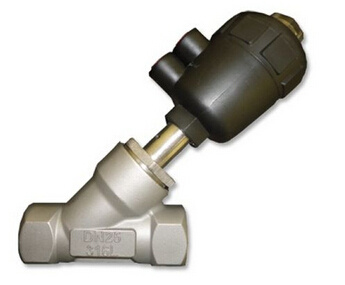

Application:
Control gas: Neutral gas, air control liquid, automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.
Function:
Angle seat valve keep the flow speed and can save the space, it adopt oriented angle seat valve which have spring safety protective single function pneumatic actuator for operated.
When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator, ensure can use longer.
Feature:
· Spring return normally open/closed and double-acting
· Materials: Valve Body Stainless Steel 316 CF8M, Pneumatic actuator Stainless Steel 304
Seat Materials: PTFE
· Steam Material: Stainless Steel 316
· High Flow Rate
· Piston Sealing: NBR (Buna N)
· Position Indicator
· Pilot connection can be rotated 360°
· Compact pneumatic actuator
· Installation: Any position
· Control Fluid: Neutral gases, air
· High cycle life compared with a ball valve
Standard Design:
Single function (The pneumatic head usually a hole): Working principle: To reach the open and close function according to spring reset, it divide into normally open and close.
Double function (the pneumatic head usually two hole): Working principle: Give the air to control switch. (according to customer's required, it can choose double function add spring rest, control precise)
The pneumatic angle seat valve according to pipeline installation category can divide into: Welded, clamped, threaded and flanged connect type.
The actuator of pneumatic angle seat valve can divide into: Plastic actuator angle seat valve and stainless steel actuator angle seat valve.
Technical Data: :
Range of pressure: 0~2.5Mpa(PN0-PN25)
Medium temperature:
-20~+180 degree (normal type)
-20~+300degree(high temperature)
Enviroment temperature: -10~+60 degree
