Product Description

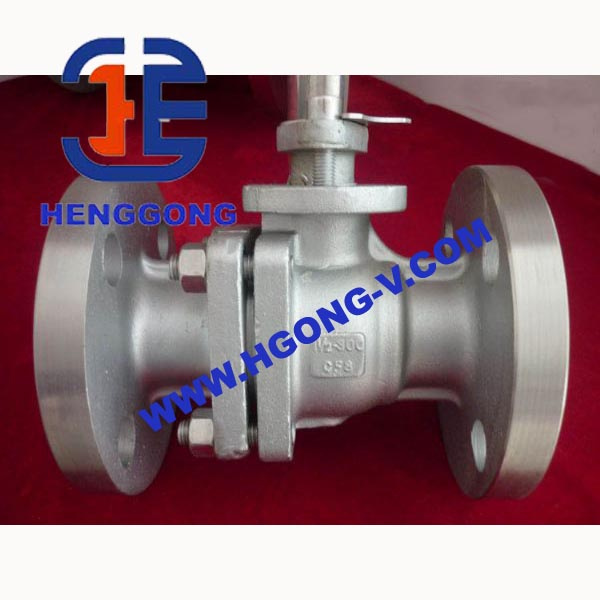

Floating Ball Valve (CLASS 150~300)
Bolted bonnet, Two-piece Body, Floating Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Stainless steel ball
ASTM A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: API 608, API 6D, BS5351
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
Test and inspection: API 598, API 6D
NO. | Part | Material |
| 1 | Body | ASTM A216-WCB A352-LCB A351-CF8,CF8MK,CF3,CF3M,Duplex |
| 2 | Seat Spring | Inconel X-7505 SS304 SS316 |
| 3 | Seat Ring | ASTM A105+ENP A182-F304,F316,F316L,F6,F51 |
| 4 | Seat | PTFE RPTFE PEEK PPL |
| 5 | Ball | ASTM A105+ENP A182-F304,F316,F316L,F6,F51 |
| 6 | Key | 1045 A182-F304,F316,F316L,F304L |
| 7 | Sliding Bearing | Stainless Steel+PTFE SS316+PTFE |
| 8 | Thrust Washer | PTFE |
| 9 | O-ring | NBR Vtion |
| 10 | Stud | ASTM 193-B7,B7M,B8,B8M |
| 11 | Nut | ASTM 194-2H,2HM,8,8M |
| 12 | Yoke | A216-WCB |
| 13 | Gland Flange | A216-WCB A3541-CF8 |
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.
Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.
The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.
Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
