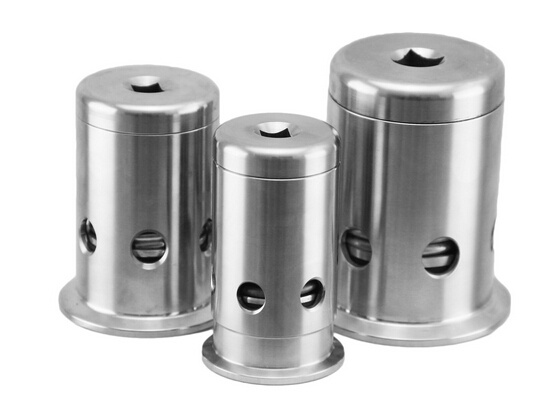

SS304 Tank Pressure and Vacuum Relief Valve.
Sanitary Tank Pressure and Vacuum Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.
As for installation of the clamp style Tank Pressure and Vacuum Relief Valve, position the valve on the process line and tighten the nut or fasten the clamp according to the fastening system selected and if you are using the clamp style it is recommended to use a clamp gasket and tighten the wing nut of the Heavy Duty Single Pin Clamp to 25 inch pounds of torque.
The calibration range is as follows:
Pressure: 2.8 PSI to 43.5 PSI
Vacuum: 0.15 PSI to 0.75 PSI
The above calibration ranges depend on model and size.
When the need arises for a Tank Pressure and Vacuum Relief Valve, please call us Toll Free as we stock the 1.5" Clamp style and can supply you with other sizes depending on the quantity.
|
Size |
Standard |
|
1" -2" |
SMS , 3A, ISO |
|
|
|
Established in 1996, Wenzhou Gaoya Light Machinery Co., Ltd. Has developed into a specialized manufacturer of valves and pipe fittings after several years' hard work. Our company has succeeded in getting ISO9001 International Quality Assurance System Certification.
With advanced technology and equipment, our company is really powerful and with strong technological development and innovation capability. With strong technical equipment such as advanced numerical control machine tool and other processing detection equipment, as well as talented personnel and skilled technicians, we integrate design, production and service together. We specialize in the production of sanitary level stainless liquid equipments (such as water treatment equipments, pre-treat equipments for beverage, sterilization equipments, whole set equipment for drink water in bulk and in bottle), valves and pipeline connection products, which can be manufactured according to different glossiness, materials and industrial standards, including ISO, DIN, IDF, and SMS standards.
Our products are applied in wide fields such as food, medicine, dairy products, beer, beverage, and fine chemical. For many years, adhering to management faith of "Regarding Quality as Life, Development on Technology", and insisting on "People Oriented and Technology Centered", our company has made great achievements through consistent hard work by all employees. Looking into the future, our company sincerely hopes to establish long term friendly partnership with domestic and overseas customers for yielding richer harvest in return for our society as well as creating bright future.
