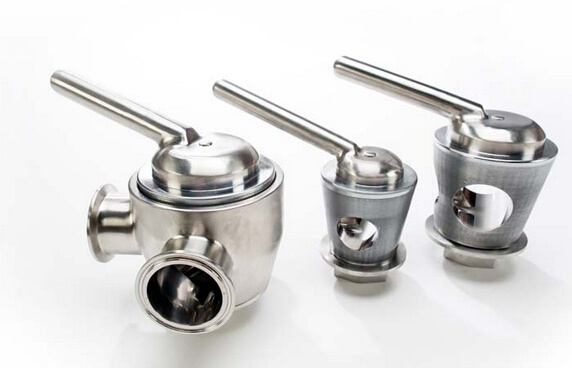

Ss304 Sanitary Stainless Steel Three Way Plug Valve

Ss304 Sanitary Stainless Steel Three Way Plug Valve
Price: US $ 26.4-69.7/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Application:
The ball valve can make the three positive intersection pipeline contact to each other or cutting the third passage. Plays a role of shunting and the confluence. Ball valve can contact two positive intersection pipeline, ball valve in pipeline mainly be used to cutting, distribution and change the media's flow direction.
Ball valve's working principle is by revolving valve core to turn on or off the valve
Matters need attention by installation or maintenance ball valve:
1. Need reserve place of rotary valve handle
2. Cannot be used as a throttle
3. Ball valve with transmisson shall be install in vertical

The working of the ball valve:
Ball valve port, Adopt four plane seat, balance force reliable sealing, ball core with port hole. Mainluy used for flow path reversing.
Ball valve, Adopt plane seat force balance, guarantee reliable sealing when latch channels, Mainly used for bypass flow, mixed flow, reversing and the ports totally open.

Integration structure
1. Ball valve, have long service life, large flow capacity, and small flow resistance.
2. Ball valve according to different functions can be divided into two kinds of types as single and double function, single acting's feature is once the power supply in failure state, the power supply in failure state, the ball valve will be in a state of control system requirements.
3. Valve seat type, less flange connection, high reliability, realized the lightweight design.
The advantage of ball valve:
Ball valve is be used to cutting off, distribution and change the media's flow direction in the pipeline. Ball valve is the new type valve be widely used in recent years. It has the following advantages:
1. Low fluid resistance. It's resistance coefficient is the same as the same length pipeline.
2. Simple structure small volume, light weight
3. Tighterning and reliable, material of ball valve's sealing surface is PTFE, Sealed well, strong corrosion resistance.
4...Easy operation, Open or close quickly, from open or close as soon as rotate 90 degree easy control by long distance.
5. Easy to maintenance. Simple structure, sealing ring ordinary are active, disassembling and replacement
Is more convenient.
6. In full open ore full close, valve body and valve seat's sealing surface be insulate with media. Then medium
Through, does not cause the valve sealing surface erosion
SIZE Standard
 1" - 6"  SMS , 3A
 DN20-DN150  DIN
Prod Model: GYPV-320
Markets: North America,South America,Eastern Europe,Mid East
Size: 1" -6"
Material: Stainless Steel
Structure: Tubular
Function: Ddcv Double Lobe
Connection Form: Thread, Welding, Flange
Application: Dairy Producing Line
Established in 1996, Wenzhou Gaoya Light Machinery Co., Ltd. Has developed into a specialized manufacturer of valves and pipe fittings after several years' hard work. Our company has succeeded in getting ISO9001 International Quality Assurance System Certification.
With advanced technology and equipment, our company is really powerful and with strong technological development and innovation capability. With strong technical equipment such as advanced numerical control machine tool and other processing detection equipment, as well as talented personnel and skilled technicians, we integrate design, production and service together. We specialize in the production of sanitary level stainless liquid equipments (such as water treatment equipments, pre-treat equipments for beverage, sterilization equipments, whole set equipment for drink water in bulk and in bottle), valves and pipeline connection products, which can be manufactured according to different glossiness, materials and industrial standards, including ISO, DIN, IDF, and SMS standards.
Our products are applied in wide fields such as food, medicine, dairy products, beer, beverage, and fine chemical. For many years, adhering to management faith of "Regarding Quality as Life, Development on Technology", and insisting on "People Oriented and Technology Centered", our company has made great achievements through consistent hard work by all employees. Looking into the future, our company sincerely hopes to establish long term friendly partnership with domestic and overseas customers for yielding richer harvest in return for our society as well as creating bright future.
