Product Description
1) Size: DN15-DN250
2) Pressure: 16-40Mpa
3) Temperature Range: -20~232oC~300oC
4) Suitable medium: Water, Oil, gas, and some Corrosive liquid
5)Flanged end& Blow-out proof stem& Fire safe construction& Anti static device
6)Ball Type: Floating Ball
7)Port Type: Standard bore
8)Material: WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
9)Ball and Stem: SS304, SS316, SS304L, SS316L, SS410, SS416. etc.
10)Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON. etc.
11)Operation: Manual or Gear Box

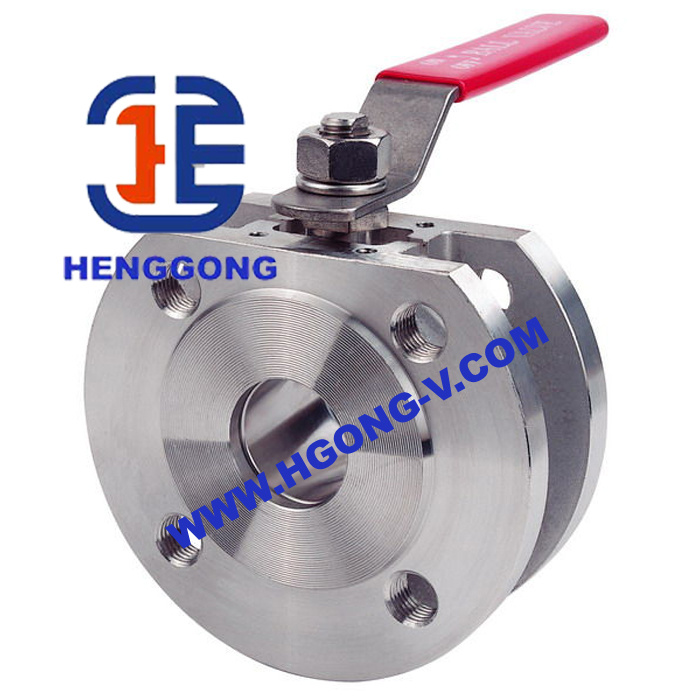

Stainless Steel Wafer Ball Valves (Q71F)
Size: 1/2" -8" (DN15~DN200)
Pressure: Class150LB-600LB (PN16~PN100)
Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacture Std.: API608, ASME B16.34, DIN 3357
End Connection Std.: ASME B16.5, JISB2212/JISB2214, DIN2543-2544
Test Standard: API598, API 6D, DIN3230, JIS B2003
Structure Type: One-piece(1/2 -5 ), Two-piece (6 -8 ), Full bore
Operated way: Lever, Pneumatic, Electric
Design & Manufacture Std | API608, ASME B16.34, DIN 3357 |
| End Connection Std. | ASME B16.5, JISB2212/JISB2214, DIN2543-2544 |
| Test Standard | API598, API 6D, DIN3230, JIS B2003 |
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.
Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.
The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.
Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
