Product Explanation:

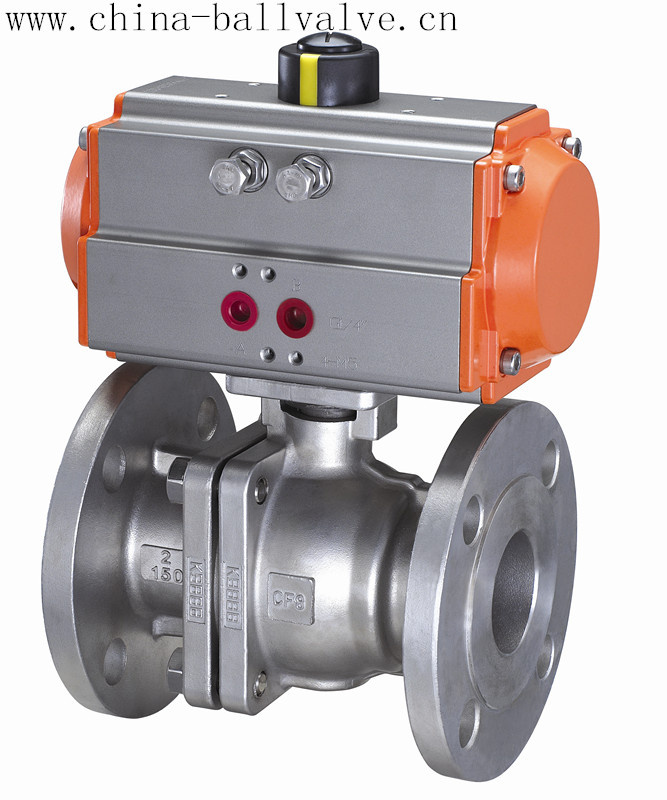

Pneumatic Flanged end Ball Valve
Applicable Standards
Working Pressure: 1000WOG
Temperature Range: -20~250° C
| DN(inch) | Φ D | L | H | H1 | A | W | Φ E1 | Φ E2 | P | Φ U1 | Φ U2 |
| 1/2" | 15 | 79 | 42 | 72 | 8 | 135 | 36 | 42 | 9 | 6 | 6 |
| 3/4" | 20 | 82 | 48.5 | 80 | 9 | 135 | 36 | 42 | 9 | 6 | 6 |
| 1" | 25 | 90 | 58.5 | 90 | 11 | 170 | 42 | 50 | 11 | 6 | 7 |
| 1-1/4" | 32 | 112 | 63 | 95 | 11 | 170 | 42 | 50 | 11 | 6 | 7 |
| 1-1/2" | 38 | 120 | 71 | 106 | 14 | 200 | 50 | 70 | 14 | 7 | 9 |
| 2" | 50 | 144 | 78 | 113 | 14 | 200 | 50 | 70 | 14 | 7 | 9 |
| 2-1/2" | 65 | 176 | 100 | 149 | 17 | 300 | 70 | 102 | 17 | 9 | 11 |
| 3" | 76 | 200 | 109 | 159 | 17 | 300 | 70 | 102 | 17 | 9 | 11 |
| 4" | 100 | 227 | 140 | 205 | 22 | 400 | - | 102 | 22 | - | 11 |
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
