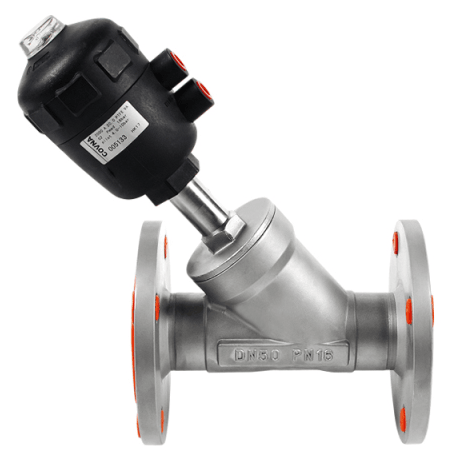

Stainess Steel Pneumatic Flange Angle Seat Valve

Stainess Steel Pneumatic Flange Angle Seat Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Connection

Thread/ Flanged/ Tri-clamped/ Welded Ended

Diameter Size

1/4"-3"

Body Material

SS201, SS304, SS316

Seals Material

Stainless Steel/ PTFE

Medium

Water/ Steam/ Oil/ Neutral gases/ liquids/ Corrosive/ Acidic Substances

Medium Pressure

0-1.6 Mpa

Medium Temperature

-30 °C ~+280 °C

Nominal Pressure

0-2.5 Mpa

Ambient Temperature

-10 °C ~+80 °C

Actuator Material

Black Plastic ( PA )

Control Medium

Neutral gas/ Air

Control Pressure

0.3-0.8Mpa (43.5-116psi)

Control Type

NC, NO, DA

Actuator Size

50mm, 63mm, 80mm

Applicable Field


Food machinery, manufacturing machinery, sterilization cabinets, high-pressure sterilizer, ozone machine, production lines of beer and so on

Certifications

ISO9001:2008


Features:
1) Investment Casting Body
2) Metal Sealing
3) Non-rising Stem Design
3) Hand Wheel Operation
4) Working Temperature: from -20°C to 180 °C
5) Max Working Pressure: 200 PSI WOG
6) Working Medium: Water,Oil,Gas,Acid ect.
Prod Model: XHC-0507
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO9001, CE, RoHS
Warranty: One Year
Connection Form: Flange
Usage: Heating Pipeline
Size: Dn50- Pn16
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
