Home Valve Products Stainless Steel 1PC Ball Valve Dn50

Stainless Steel 1PC Ball Valve Dn50

Stainless Steel 1PC Ball Valve Dn50
Price: US $ 2-30/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Stainless Steel Ball Valve 1PC Ball Valve 1000W.O.G NPT BSP BSPT FLANGED END

Features:
·   Size: 1/4"~4"
·   Body Material: ASTM A216 WCB/DIN 1.0619,SS316/ASTM A351 CF8M/DIN 1.4408, SS304/ASTM    A351 CF8/1.4308
·   Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
·   Max. Pressure:6.4MPa
·   Temperature Range:-20ºC~232ºC
·   Suitable Medium:Water,Oil,Gas and some Corrosive Liquids
·   Blow-out Proof Stem/Reduced Port
·   Investment Casting Body
·  1000PSI(PN64)W.O.G  150lb
·   Delivery Time:Usually Within 30days after received T/T deposit Payment
·   Payment:Usually T/T, but L/C also acceptable.
Main Parts and Materials

1
BodyWCB/SS316/SS3047Thrust WasherPTFE
2CapWCBSS316/SS3048Packing GlandSS316/SS304
3SeatPTFE9NutSS/SS316/SS304
4BallCF8/CF8M10HandleSS
5StemF316/F30411Handle CoverPlastic
6PackingPTFE12GasketPTFE
Prod Model: Q11F&Q41F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material: Wcb/Ss304/Ss316/Ss316L
Ball Material: Ss304/ Ss316
Coutry Of Origin: China
Entry Type: Top Entry
Material: Stainless Steel
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Connection Form: Threaded / Flanged
Nominal Pressure: 150lb / 1000wog / Pn63
Function: Ball Valve
Temperature: -20~232

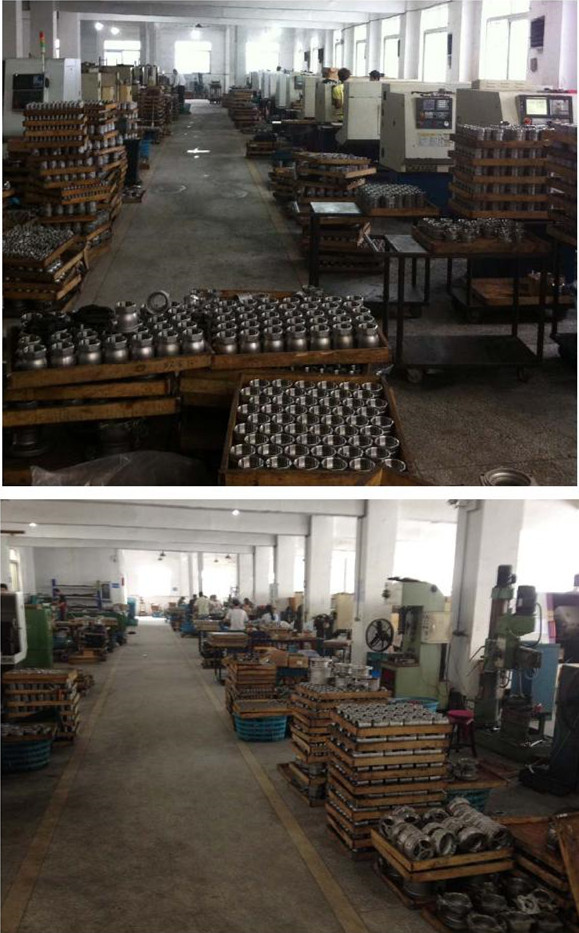

Zhejiang Wanbao Valve Technology Co., Ltd is located in Wenzhou city - the valve centre of China and covers an area of 6000 square meters. The company is specialized in the development, production and sales of pipe fittings and has the most advanced processing equipment, modern testing technologies, various CNC machines and other advanced machines.

Since its establishment in 1985, the company constantly develops new products based on scientific and technological innovation. The production is carried out as per different international standards: API, ANSI, JIS, ISO, BS, GOST, also by national standards JB and GB. The company created Computer-aided engineering and design (CAD) center, UG three-dimensional design center and testing center. Using the powerful production equipments and perfect testing methods, the company is able to effectively improve the product quality, thus ensuring the interests of customers.

Our main products are as follow: Various types of ball valves (1-PC, 2-PC, 3-PC ball valves, sanitary ball valve, fully welded ball valve), globe valves, check valves, gate valves, butterfly valves, strainers, fire hydrants, pipe fittings, etc. Our products are widely used in chemical, petroleum, metallurgy, electric power, food, pharmaceutical, fibrous, civil, light industry, etc.

By now the company has powerful technical forces and more than 120 employees, including 16 senior engineers and technical personnel. The registered capital of the company is 10.18 million and 1 million RMB. The company is a member of the Association of valves of Longwan district. The company has established a perfect sales network. Products are exported to Europe, America, Middle East, Southeast Asia, Africa, Korea, Russia, etc., for the installation in industrial pipelines of hydro-power station. We received a positive evaluation of our products and by now there is no quality complaints from customers.

Adhering to the business philosophy "survival by quality, development by reputation", the company is committed to "create the image of Wanbao all efforts and create the brand Wenbao with all our heart". The company has repeatedly been rated as the enterprise, which "values the contract and keeps reputation. "

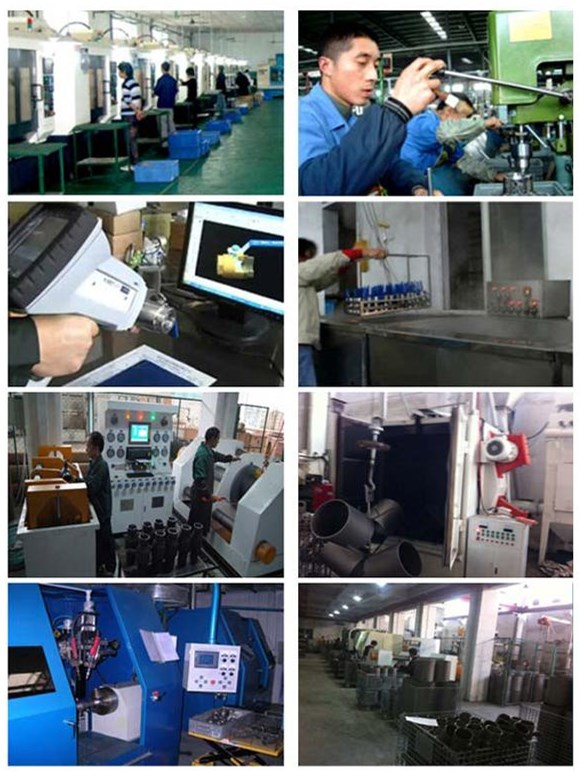

After passing various kinds of certification, the company has improved testing methods and testing equipments. The company has all kinds of equipments for physical and chemical testing, such as spectrum quantitative analyzer, roundness measurement instrument (made in Japan), HLN-11A Leeb hardness tester, torque wrench, HR-150A Rockwell hardness tester, XXQ-2505 inflatable X-ray converter defectoscope, MT150 ultrasonic thickness gauge, WEW-300B universal hydraulic testing machine, testing fatigue testing machine, etc.

Wenbao company warmly welcomes new and old customers to cooperate and create our brilliant future!
