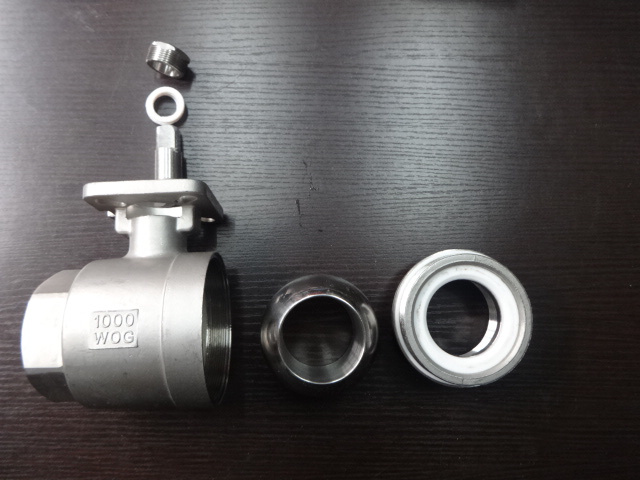

Stainless Steel 2PC Ball Valve with Mounting Pad

Stainless Steel 2PC Ball Valve with Mounting Pad
Price: US $ 2.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: Paypal,Western Union
Stainless Steel 2PC Ball Valve with Mounting Pad
Brief description:
1) Size: 1/4~4"
2) Working pressure: 1.6-6.4mPa
3) Temperature range: -20° C ~ 232° C ~ 350° C
4) Suitable medium: Water, oil, air, some corrosive liquid
5) Thread type: ZG. G, NPT, BSPT, BSP, DIN259/2999
6) Design: ASME B16.34
7) Handle: Lever Handle/Locking Device Handle Upon Request
6) We can also manufacture similar products according to your special requirements
Brand YZ/OEM
 Applicable Media Q11F-(16-64C): Water,Oil,Gas

 Q11F-(16-64)P: Nitric Acid

 Q11F-(16-64)R: Acetic Acid
 Normal Pressure 1000WOG
 Strength Testing Pressure PT 2.4,3.8,6.0,9.6Mpa
 Seat Testing Pressure(Low Pressure) 0.6Mpa
 Applicable Temp:  -20°C-425°C
 Certification:  ISO9001-2008/CE
 Sample Testing One sample for free(Under $10) Freight Collect
 Packing:  Plastic Bag, Carton & Plywood Cases or according to Customers' Requirest
 Payment: Usually T/T,But L/C also acceptable
 Port Ningbo /Shanghai
 Delivery Time: Usually Within 30days after received the deposit payment
 Term of DeliveryFOB/CNF/CIF,Customers'  Request
Prod Model: Ball Valve009
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"-4"
Handle Sleeve: Blue,Red,Green,White and So on
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Nominal Pressure: 1000psi
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.

The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.

Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
