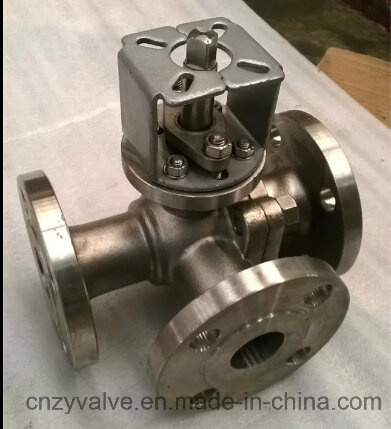

Stainless Steel 304/316 Three Ways Ball Valve with High Platform
| Price: |
US $ 63/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Design standard:API6D ASME B16.34 DIN 3357-1 EN12516-1
Face to face: API 6D DIN3202
Flanged ends:ASME B16.5 DIN2542 DIN 2543 DIN2544 DIN2545 EN1092
Flanged ends:ASME B16.5 DIN2542 DIN 2543 DIN2544 DIN2545 EN1092
Test & Inspection: API 6D API598 DIN3230-3 EN12266.
About the structure and work principle(Trunnion ball valve)
1.Indication of valve's open and close positions
1.block-up and excretion
when the valve is in the closed state, the seat ring on the upstream and downstream sides cuts off the fluid and the accumulated matters in the middle cavity of the body can be excreted. The excreting device features the following functions.
1).can check if the seat ring leaks or gets damaged beforehand.
2).reduce pollution to the valve due to the medium replacement.
3).the packing on the stem portion can be re4placed when the valve is the fully opened or closed state under the working pressure.
Part mane |
Material |
Part mane |
Material |
Body |
Carbon Steel/Stainless Steel, 105, LF2, F304, F316, F304L, F316L, F321, F51,WCB, WCC, WC6, WC9, 304SS, 316SS, Alloy , etc |
Packing |
Graphite |
Stem |
410,420,304, 304L, 316, 316L |
Stuffing cover |
WCB, CF8, CF8M |
Disc |
A105,CF8, CF8M CF8C, CF3, CF3M,F51 |
Yoke |
WCB,CF8,CF8M,CF3 CF3M |
seat |
Stellite,Cr |
Worm device |
Manual, Gear, Electric, Pneumatic, Hydraulic. |
| Prod Model: |
Q44F-150LB-DN40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Tee Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
