Product Description

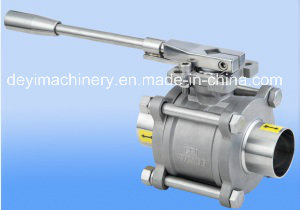

Products Name:Stainless Steel 3PCS Welded Manual Sanitary Ball Valve(DY-V025)
Application:This type valve series is manually, it used to control the material transfer, which is widely used in food, beverage, pharmaceutical and chemical industrial piping system, to regulate and control the medium flow in the system.Working principle:This kind of valve can be operated through actuator (90 degree rotary handle), its actuator or manually with the hand is to revolve the axial movement unto 90degree, so the valve can open or close. The actuator have three type.Multi-position handle can use to 15 degree adjustment of valve there is 12seat to lock open or close, In that way, the valve can control the flow.Pulling handle can use to the 4 multi-function to lock open or close. In that way, the valve can control the flow.Material: Steel parts: 304 stainless steel, stainless steel 316LSeal: VMQ, FPM, EPDM, PTFEStandard design: SMS. Our company offers other standard, such as 3A, DIN, IDF, RS/RJT, ASME/BPE, ETC.The parts of valve usually include: Valve body which divided into two parts, the ball with through cavity, valve stem and control sets(handle/actuator)etc.Connection: Weld, Our company also offers clamp, weld/clamp, etc.SMS-NO.V025 | Size | Length | outer diameter | inner diameter | G | H | L | ISO5211 | S | N.m |
12.7 | 93 | 12.7 | 9.7 | 40.3 | 71 | 130 | F03 PCD36 6X4 F04 PCD42 6X4 | 9 | 5.5 |
19 | 103.5 | 19.05 | 16.05 | 42.3 | 73 | 130 | F03 PCD36 6X4 F04 PCD42 6X4 | 9 | 5.5 |
25 | 110 | 25.4 | 22.4 | 53.4 | 91.6 | 165 | F04 PCD42 6X4 F05 PCD50 7X4 | 11 | 11.8 |
32 | 120 | 31.8 | 28.8 | 58.4 | 96.6 | 165 | F04 PCD42 6X4 F05 PCD50 7X4 | 11 | 14.2 |
38 | 129 | 38.1 | 35.1 | 70.8 | 104 | 190 | F05 PCD50 7X4 F07 PCD70 9X4 | 14 | 19.0 |
51 | 145 | 50.8 | 47.8 | 77.8 | 110 | 190 | F05 PCD50 7X4 F07 PCD70 9X4 | 14 | 23.7 |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
