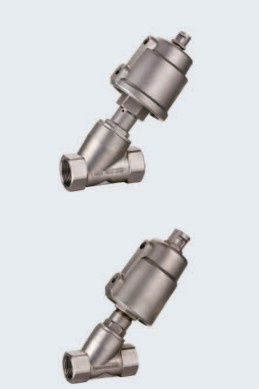

Stainless Steel Angle Seat Valve

Stainless Steel Angle Seat Valve
Price: Negotiable
Min Order: 1
Pneumatic angle seat valve
Product Description
Advantages:

1. Easy installation, maintenance-free, super long life;
2. Reliable operation, self-adjusting stem seals, cylinder can be 360 Rotated free;
3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;
4. Optical position indication, low control air consumption.

Control Type: Single acting (NO/NC)
Size: DN10 ~ DN50(3/8" ~ 2 ")
Connection: BSP or NPT threaded
Actuator Size: 40mm, 50mm, 63mm, 80mm
Body Material: CF8M (AISI 316) or CF8 (AISI304)
Actuator: CF8 (AISI304)
Seat: Teflon (PTFE).

Applicable Fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye
Fluid Pressure: Max. 1.6MPa (16 bar, 232Psi)
Fluid Temperature: -10 - +200 C
Max. Viscosity: 600 mm2/s
Control Fluid: Neutral gas, air
Control Pressure: 0.3 - 0.8MPa
Ambient Temperature: 0 - +80 C
Options: Solenoid valve, smart positioner, limit switch, stroke limitation, manual override.
CE NO.: TTS09101770ERP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Sanitary Ware
Connection Form: Thread
My company was established in May 2004, at the beautiful kites all the world.
We set the company research, development, casting, processing, testing, technical services as one. Our mainly product: Stainless steel valves, camlock coupling, pneumatic angle seat valve, Ball Valve, Knife Gate valve. And we can do all types of stainless steel casting business. Products used for drainage, food, oil, chemicals, electricity, medicine and other industries.

My company has a leading silica sol casting production lines and production CNC machining centers, using advanced casting technology and hi-tech spectrometer detection technology and strict implementation of ISO-9001 quality system standards to quality, integrity-based Business philosophy, customer service, contributing to society.
