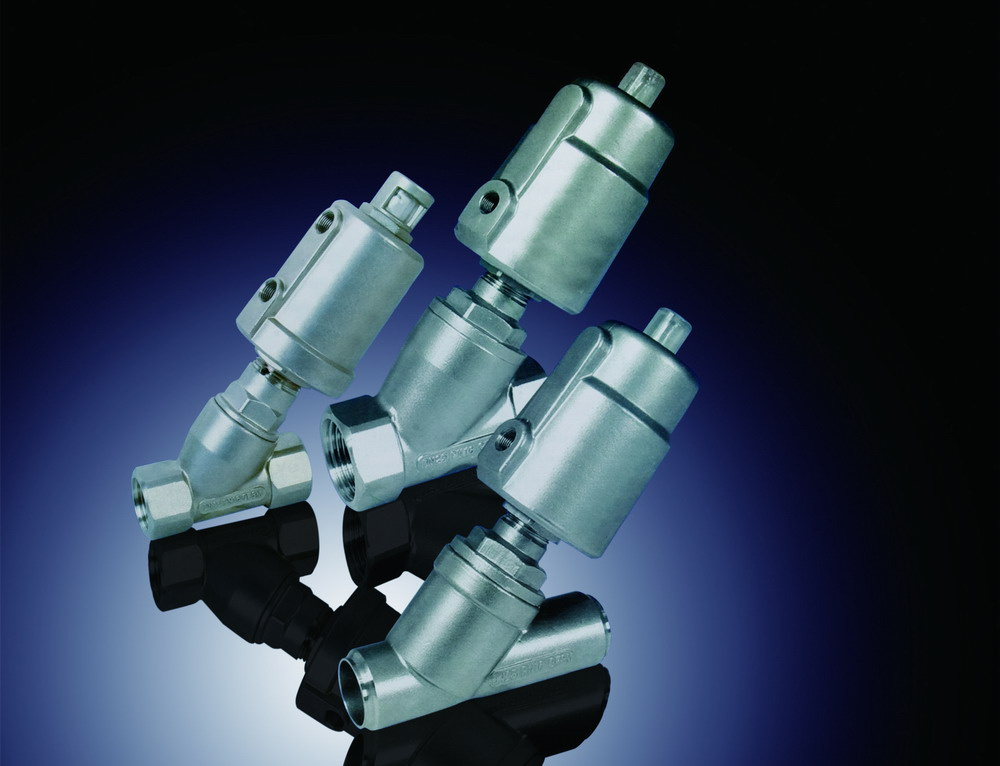

Stainless Steel Angle Seat Valve

Stainless Steel Angle Seat Valve
Price: Negotiable/Piece
Min Order: 1 /Piece
SPECIFICATIONS:
End Connections: Threaded Welded
Valve body: CF8M
Actuator: CF8
Seat seals: PTFE
Appliacable medium: Water, liquid neuteral gas, water steam,
Slight corrosive gas and liquid
Temperature range: PTFE: -10° C to +180° C
Ambient temperature: -10° C~+60° C
Contorlling Pressure: 0.3~1.0MPa
Type Actuator D R P  Thread  Welded
mm mm G K1 A1 L T SW O.D. K2 A2 LA LB S
mm mm mm mm mm mm mm mm mm mm mm mm
DN10 40 50.5 27 G1/8″ G3/8″ 115 120 68 12 26.6
50 60 35 G1/8″ G3/8″ 126 133 68 12 26.6
DN15 40 50.5 27 G1/8″ G1/2″ 115 120 68 15 26.6 21.3 115 128 100 30 2.65
50 60 35 G1/8″ G1/2″ 126 133 68 15 26.6 21.3 126 140 100 30 2.65
DN20 50 60 35 G1/8″ G3/4″ 131 137 75 16 32 26.9 131 136 108 31 3.45
DN25 50 60 35 G1/8″ G1″ 140 149 90 17 39.5 33.7 140 150 112 32 3.85
63 77 43 G1/8″ G1″ 165 174 90 17 39.5 33.7 165 175 112 32 3.85
DN32 63 77 43 G1/8″ G1-1/4″ 175 188 116 21 50 38 175 193 136 40 3.35
80 98 52 G1/4″ G1-1/4″ 187 199 116 21 50 38 186 202 136 40 3.35
100 121 63 G1/4″ G1-1/4″ 198 209 116 21 50 38 195 217 136 40 3.35
DN40 63 77 43 G1/8″ G1-1/2″ 178 190 116 21 55.3 45 178 193 146 40 4.7
80 98 52 G1/4″ G1-1/2″ 192 200 116 21 55.3 45 187 204 146 40 4.7
100 121 63 G1/4″ G1-1/2″ 202 216 116 21 55.3 45 197 219 146 40 4.7
DN50 63 77 43 G1/8″ G2″ 184 203 138 22 70 57 184 206 160 45 4.2
80 98 52 G1/4″ G2″ 196 213 138 22 70 57 197 216 160 45 4.2
100 121 63 G1/4″ G2″ 210 230 138 22 70 57 206 232 160 45 4.2
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe
Connection Form: Flange
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Force Sealed
Material Of Seal Surface: Metal Hard Sealed
Structure: Double-Eccentric Sealing
Hangzhou Pass Fluid Equipment Co., Ltd. is a special corporation engaged in research, development and manufacture of fluid equipment, with its main service focusing on water treatment, pipeline connectors (COUPLING) valve and water pump. Relying on its own forces, the company makes ceaseless innovation, actively introduces foreign advanced management methods and marketing idea, constantly taps potential, carries out wide exchange and cooperation. It has established good cooperation relationships with domestic famous institutes and universities and overseas enterprises.

It is sited by the side of the beautiful West Lake, in the center of the Canal Culture Square, and adjacent to the Gland Canal. It owns modern office building, and has built modern development and production base with the great support from Zhejiang University, undertaking engineering services in water treatment, pipeline valve.

As a pioneer in the trade, Pass Fluid Equipment Co., Ltd. (PASS) always persists in the business idea of keeping sincere, professional and innovative, ceaselessly develops new technologies, expands new fields and provides client with optimized solutions.

Pass Fluid Equipment Co., Ltd. (PASS) is a professional fluid engineering company specializing in many industries such as power, petrochemicals, chemicals, electron, metallurgy, medicine and real estate and undertaking overall projects such as feasibility study, design, manufacture, works construction and management, and after-sales services.
