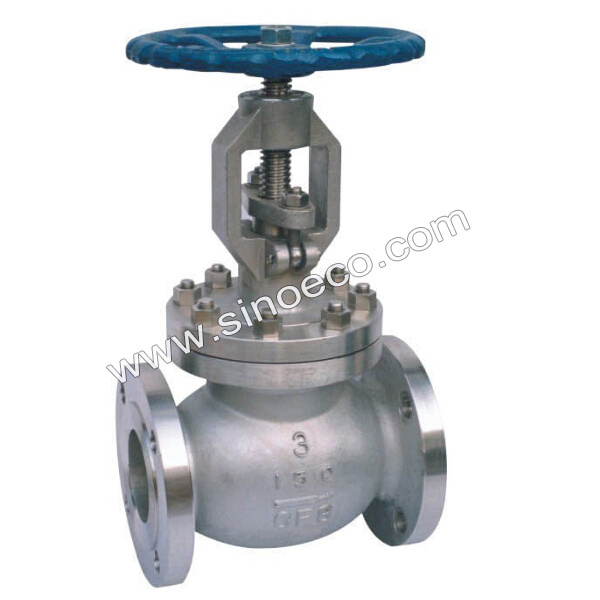

Carbon Steel ANSI Globe Valve
Product Description:
Globe Valve is a common cut- off valve which used in the connection and cut off the pipeline medium. The simple structure make it easier to manufacture and maintain .
This valve product is comprised of valve body, disc, stem and packing. It offers various actuation options including electrical, manual and bevel gear .
This statethe globe valve design ensures zero leakage,seat can be overlaid with hard sealing material and it serves in various applications.Streamlined body ports have small flow friction and the disc floated freely to endure impact load and ensure the reliable service life.Seat can be overlaid with hard sealing material and to serve in variou applications.
Production Range :
Nominal Diameter: DN50~DN300,NPS2~NPS12;
Nominal Pressure: PN10~PN100,CL150~CL600
Design Standard: BS5160,API600
End Connection: Flange
Body Material: CF8
Working temp: -196ºC~600ºC.
Face to Face: ANSI B 16.10
Material specification
| Part Material | Part name |
| A216-WCB | A217-WC6 | A352-CF8 | A351-CF8M | Body/Bonnet |
| A105 | A182-F11 | A182-F304 | A182-F316 | Disc |
| A182-F6a | A182-F11 | A182-F304 | A182-F316 | Stem |
| Flexible Graphite | PTFE | Packing |
| 18-8Flexible Graphete | Gasket |
| A193-B7 | A193-B7 | A193-B8 | A193-B8M | Bolt |
| -29~425ºC | -29~550ºC | -196~600ºC | -196~600ºC | Suitable Temp |
| Water, Oil, Steam | Steam, Oil | Nitric acid kind of ai | Acetic acid kind of ai | Suitable Medium |
