Plug valves also are called cock or stop-cock valves or quater-turn valves. Plug valve design is fairly simple. The body is comprised of three main parts: body, cover, and plug. The body usually does not include a bonnet. The plug is a cylindrical, tapered, or generally cone-shaped device that can be raised or lowered within the seat to maintain, restrict, or completely shut off flow.
Plug valves are simple and economical. The ports are typically at the opposite ends of the body and therefore require a quarter turn to open and close the system. The plug itself is the only element that is capable of movement

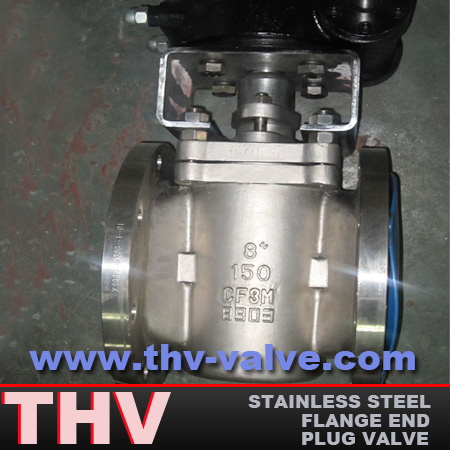

Stainless Steel Soft Sealing Plug Valve
Product Details: Size: NPS 1/2"~4"
Pressure Rating: Class 150 lb~Class 300 lb
Material: WCB, LCB, CF8, CF8M, CF3, CF3M
Design & Manufacturing Standard: API 599, API 6D, ASME B16.34
Structure Length Size: ASME B16.10, API 6D
Flange Connection Size: ASME B1.20.1, ASME B16.5, ASME B16.25
Butt Welding Size: ASME B16.25
Pressure-Reference Temperature: ASME B16.34
Check & Experiment: ISO 5208, API 6D
NO |
Part name |
Material |
1 |

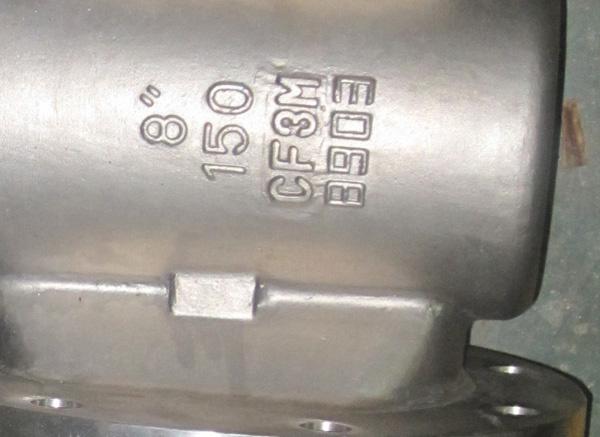

Body |
GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301 |
2 |
Sleeve |
PTFE |
3 |
Plug |
1.7363 1.4308 1.4408 1.4306 1.4301 |
4 |
Gasket |
PTFE |
5 |
Adjusting gasket |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316F321\F304L\316L |
6 |
Cover |
GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301 |
7 |
Adjusting Bolt |
ASTM A193-B7 A320-B8 193-B8M |
8 |
Nut |
ASTM A194-2H, A194-8, A194-8M |
9 |
Bolt |
ASTM A193-B7,A193-B8,A193-B8M |
10 |
Yoke |
WCB |
11 |

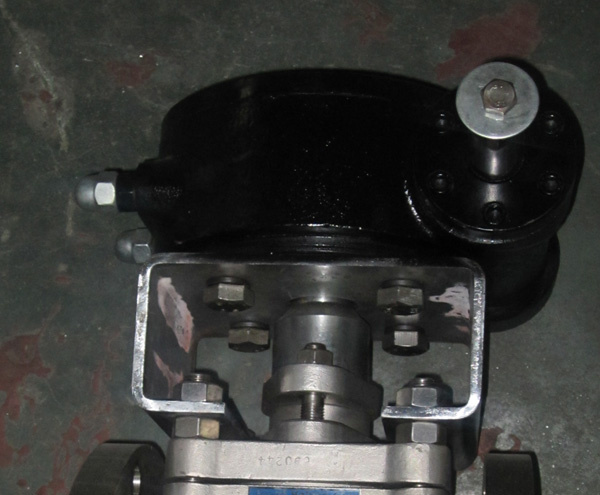

Worm |
Q235 WCB |
