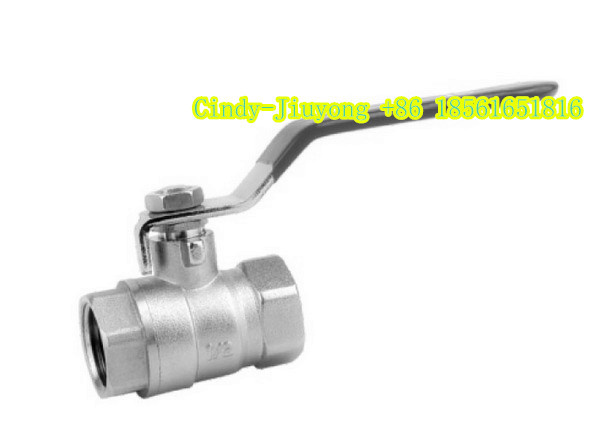

China Professional Manufacturer of Ball Valves(threaded ends ball valves, flange ends ball valves)
1)Size: 1/4" - 4", DN8- DN100
2)Material: A351-CF8, CF8M, CF3M, 316, 304; A216-WCB, brass ball valve, carbon steel ball valves, stainless steel ball valves
3)Working pressure: Max 1000/2000WOG
4)ISO9001, CE
Description:
1) Threaded ends: ANSI B1.20.1, BS 21/2779, DIN 259/2999, ISO 228
2) Testing: API 598
3) Mateiral: ASTM A351 CF8M, CF8, CF3M, SS316, SS304
ASTM A216-WCB
4) Size: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
5) Working pressure: Max 1000 WOG/2000 WOG
6) Working temperature: -20 to 180° C (RPTFE), -20 to 300 ° C (PPL)
7) Working medium: Water, Oil, Gas, Acid, Steam, etc
Technical Requirement:
Before assembling, all parts should be clean, no oil or grease, remove all burrs and sharp edges.
Before connecting, body cap male thread should be coated with sealing glue.
Handle turn or close freely.
After assembling, test by water at pressure no less than 0.8MPA, no leakage.
Size: 1/4'' to 4''
1.Material : |
SS304, SS316,SS304L,SS316L,SS410,SS416.etc. |
2 .Size: |
1/4"- 4" |
3. Pressure Rating: |
max 1000 WOG/2000 WOG |
4.Logo: |
Any logo is available |
5.MOQ: |
10 pcs |
6.Samples Time: |
(1)3-5days-If you want to customize your product and logo. |
|
(2)1day-For our existing samples for reference. |
7.OEM Accepted |
Yes |
8.Certification available: |
Yes |
9.Packing Details: |
1 pc /opp, 10-20opp / cardboard box , 1 cardboard box / carton, 36*45*50CM; GW: 33KG |
10.Production Capacity: |
30 ,000pcs Per month. |
11.Payment Term: |
(1) L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM |
|
(2) We also can provide a monthly statement payment services. |
