Specifications

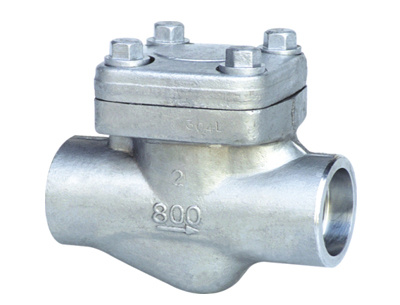

Socked Welded API Forged Check Valve
1.Pressure:800/1500/2500LBS
2.Size:1/2"-2"
3.Bolted cover
Socked Welded API Forged Check Valve
1)Forged swing check valve
2)Design ANSI B16.34/API602
3)Test API 598
4)API certificate
5)Socket welded end ANSI B16.11
API forged steel swing check valve
Size 1/2 to 2
Design Standard ANSI B16.34/API602
Test standard API 598
Socket welded end ANSI B16.11
Screwed end ANSI B1.20
Rating Class 800 1500 2500
Body A105 F5 F11 F22 F304 F304L F316 F316L
Cover A105 F5 F11 F22 F304 F304L F316 F316L
Nameplate Aluminum
Disc F6 316
Seat ring F6-HFS, 316-HFS
Retaining nut 2H, 2HM
Hinge A743-CA40 SS316
Hinge pin SS410 SS316
Supporter SS304 SS316
Gasket Graphite +304/316
Trims API #1(F6/F6), #5(HF/HF), 304, 316, Monel, NACE standard
Bonnet Welded Bonnet
End connection SW, NPT
Suitable Medium water, poil, gas
Packing Standard export packaging
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
