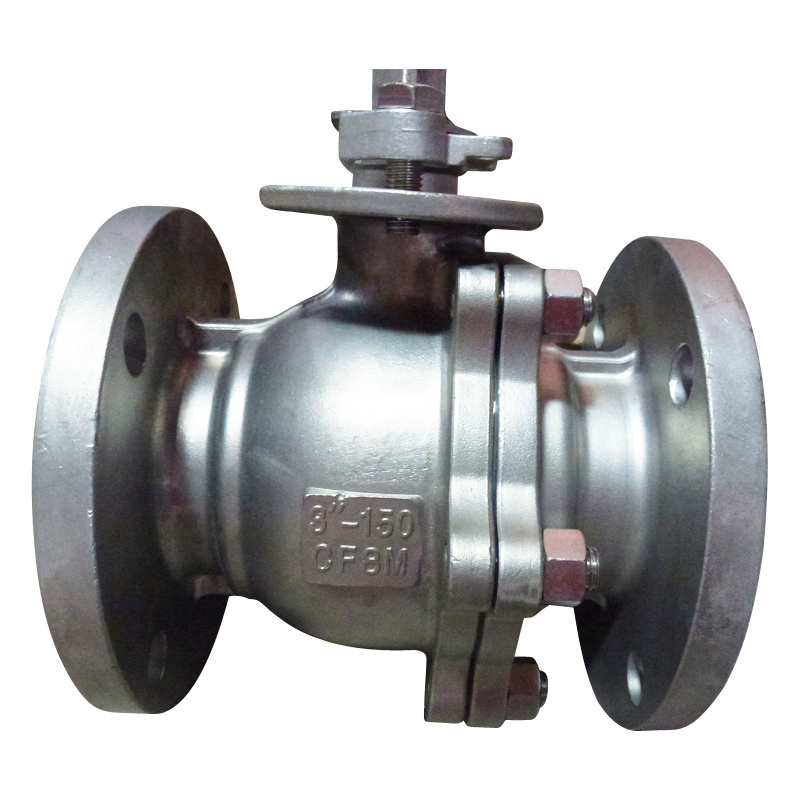

Stainless Steel Flange End Ball Valve
| Price: |
US $ 8.08/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
Ball Valve Flnge end RF Technical Standard:
Design and Manufacturer: API6D, BS5351, ASME/ANSI B16.34
Face to Face: ANSI B16.10
Flange End Connection: ANSI B16.5
Fire Safe: API607
Inspection and Test: API 598
Design Description:
Full port Design
BB, Bolted Bonnet, Split Body
Floating ball type
Blow-out proof stem
Fire durable construction
Anti Static device
ISO5211 Mounting Pad
Available with Gear Operated.
Material: A216 WCB, ASTM A351 CF8/CF3, A351 CF8M/CF3M
SIZE: 2"-12"
Working Pressure: 150LB 300LB and 600LB

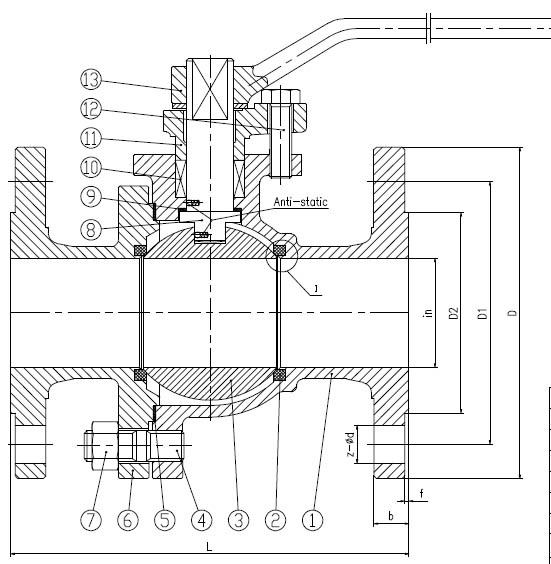

| 6 | Bonnet | SS304 | 13 | Hand wheel | SS304 |
| 5 | Gasket | PTFE | 12 | Bolt | A193-B8 |
| 4 | Bolt | A193-B8 | 11 | Gland | SS304 |
| 3 | Ball | SS304 | 10 | Filler | PTFE |
| 2 | Sealing Ring | PTFE | 9 | Gasket | PTFE |
| 1 | Body | SS304 | 8 | Stem | F304 |
| No | Name | Material | 7 | Nut | A194-8.8a |
| Ball Valve Q41F (RF) 150LB / 300LB /600LB |
| Prod Model: |
Q41F-150LB/300LB/600LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8": |
Inches |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
| Nominal Pressure: |
150lb 300lb 600lb |
Zhejiang Liangfeng Valve Co., Ltd. is located at the nationwide well-known China valve city--longwan, wenzhou, with a land area over 3000m2, and a stainless steel valve manufacturer integrating development, production and sale. The main stainless steel valves include ball valve, stop valve, gate valve, check valve, insulating valve, oxygen valve etc. 20-odd varietyes and nearly thousand models and specifications in more than 100 series.
The products use the American, Japanese and national standards, with dn from 10 to 600 and pn from 1.0 to 16.0MPa and the main materials 321, 304, 304L, 316, 316L, mo2ti, wcb etc., and with both smelting and manufacturing upon special requirements from the clients from the clients also available, and are the first choice for the electric power, hydraulic, heat supply, chemical industry, coal oil, metallurgy, fertilizer, brew, paper, making, pharmacy, etc. Trades.
The products are sold to all over the country and exported to Canada, Italy, south Korea, the Philippines, etc. Nations and greatly favored and evaluated by the users therein.
Through more than 10 years of hard work and innovation, this co. Now holds advavced production techniques, excellent equipments, perfect detecting means and management systems and has been accredited to ISO9001 international quality system approval and won the honorable titles as quality credit AA grade enterprise, exploit enteprise of China valve city etc., now is applying the national safety azqpproval. This co. Is a member of the industrial association of China universal machinery, the vice head unit of longwanvalveassociation, a council unitof longwan I/c bureau shacheng office and the vice head unit of yongxingcommercial chamber.
Creating a good quality, setting an industrial monumental work comes as the spirit of this Co., we' D like to provide the clients with quality products and satisfactory services with the specialized production, advanced and reasonable design and manufacture, excellent technological equipments, both outlookl and internal quality ideas and the service consciousness of users supreme and sincerely welcome the clients both new and old to coming for a visit and business talk. Let' S step forward and sincerely cooperate to make a new brilliance for the valve idusty.
