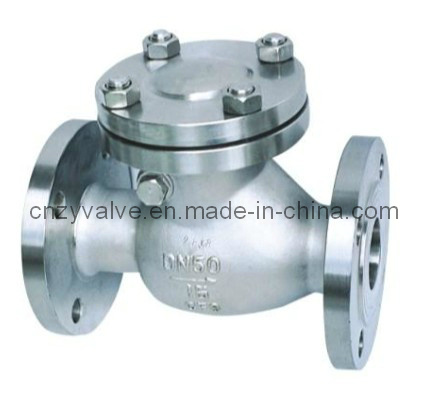

Stainless Steel Flange Swing Check Valve (H44W)
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product standard
Design and manufacture: Cast steel check valve to BS1868, ASME B16.34 and API 602 Forged steel check valve to API 602
Inspection and test: API 598 ot API 6D
End flange dimension: ASME B16.5 ( for NPS ≤ 24)
ASME B 16.47 series B, API 605 or ASME B16.47 series A, MSS SP-44 ( for NPS≥ 24)
BW end dimension: ASME B16.25
Socket- weld dimension: ASME B16.11
Face to face: ASME B16.10
Pressure-temperature rating: ASME B 16.34
Wall thickness dimension: API 600 and BS 1868
Name of part |
Material |
Body |
WCB |
ZGCr5Mo |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
Bonnet |
WCB |
ZGCr5Mo |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
Disc |
WCB |
ZGCr5Mo |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
Rocker |
WCB |
ZGCr5Mo |
ZG1Cr18Ni9Ti |
ZG1Cr18Ni12Mo2Ti |
Seat |
25 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
Pin,Shaft |
1Cr17Ni2 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
O-ring,Gasket |
Coated mat |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
| Prod Model: |
H44W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Face To Face: |
Asme B16.11 |
| Size: |
1/2"-32" |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Structure: |
Swing |
| Function: |
Sfcv Rubber Lobe |
| Application: |
Industrial Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
