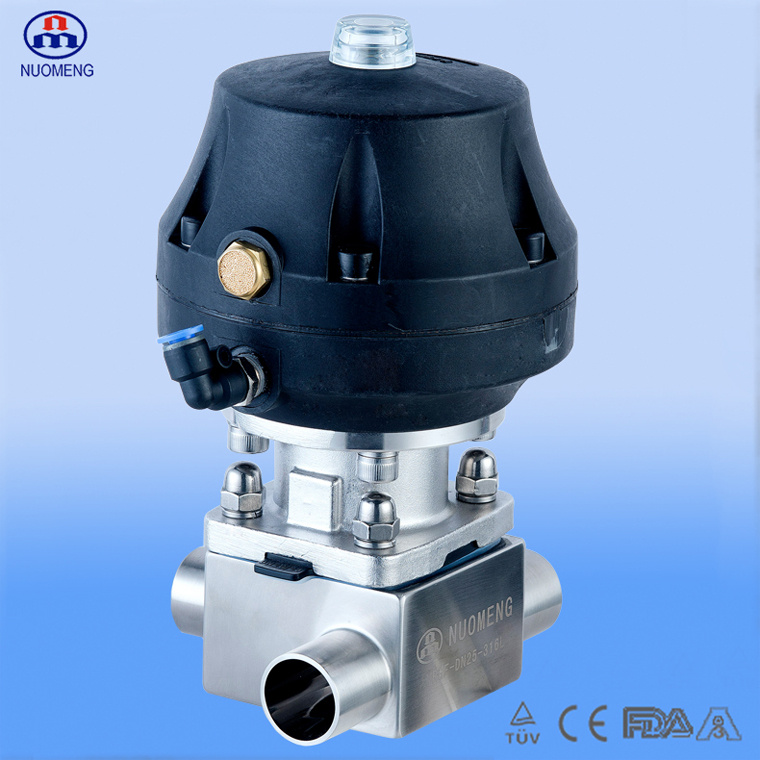

Product name: Sanitary Stainless Steel Forge Three-Way Welded Diaphragm Valve with Plastic Pneumatic Actuator
Material quality: Stainless steel 304,316L
Seal: EPDM+PTEE the seals are imported seal material (which conform to the FDA177.2600standard).
Standard: ISO
Flux domination of pipeline: φ19-φ63, applied to the stainless steel pipeline system and achieving the requirement of control and open/close for the pipeline system.
Working principle: The diaphragm is close under normal state. When the diaphragm valve have the requirment to clean or open by manual or pneumatic operation by handle or pneumatic actuator, the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally nemd upwards.
Advantage: The optimize valve body made the cleaning liquid flow out totally, so that without any entrapment. Sanitary Stainless Steel Forge Three-way manual welded Diaphram Valve
| ISO-No.RG0038 | Size | Length | Width | Inner Diameter | Outside Diameter |
| 19 | 108 | 66 | 16.05 | 19.05 |
| 25 | 127 | 82 | 22.4 | 25.4 |
| 32 | 146 | 98.5 | 28.8 | 31.8 |
| 38 | 160 | 105.5 | 35.1 | 38.1 |
| 51 | 190 | 123 | 47.8 | 50.8 |
| 63 | 216 | 129.5 | 59.5 | 63.5 |
| Plastic Pneumatic Actuator |
| Size | Height (From diaphragm to the top of Actuator ) | Length |
| φ19 | 125 | 90 |
| φ25 | 160 | 126 |
| φ32 | 190 | 150 |
| φ38 | 190 | 150 |
| φ51 | 190 | 150 |
