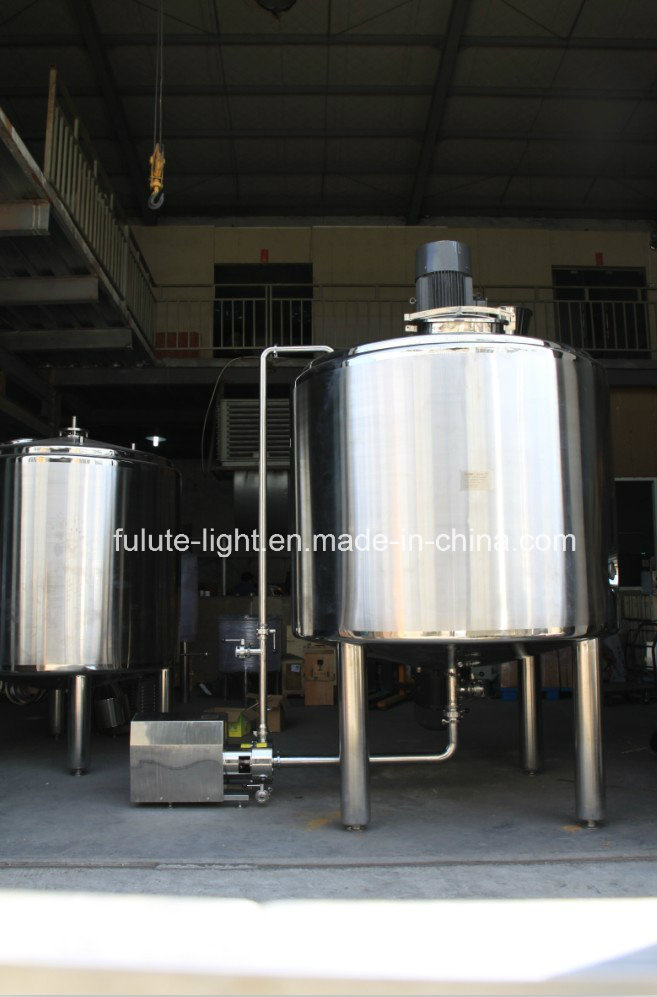

Homogenizer tank
1. Volume: 50L-5000L
2. Construction material: Ss316L or SS 304
3. Tank design:
---the tank is made of three-layer with dimple jacket for cooling use and insulation filled with PU to keep the temperature.
--elliptical body, conical bottom, dish cover
4. Polish: Mirror Polish for interior and satin Polish for exterior shell.
Configuration:
1. Quick open type manhole
2. Numeral indication type temperature meter
3. T type cleaning head
4. Hauling lever type releasing valve
5. Adjustable cone branch feet
6. Agitator
| Volume | Dimension of tank (Dxh) | Total height(H) | Insulate layer | Inlet&Outlet |
| (L) | (mmxmm) | (mm) | (mm) | (mm) |
| 100 | 550*550 | 1450 | 50 | 25 |
| 200 | 700*800 | 1500 | 50 | 25 |
| 500 | 840*1000 | 1950 | 50 | 38 |
| 1000 | 1060*1220 | 2750 | 50 | 51 |
| 2000 | 1340*1500 | 3000 | 50 | 51 |
| 3000 | 1410*2000 | 3600 | 50 | 51 |
| 5000 | 1810*2000 | 4000 | 50 | 51 |
| 10000 | 2300*2440 | 4600 | 50 | 51 |
| 15000 | 2530*3000 | 5200 | 50 | 51 |
| 20000 | 2640*3660 | 5760 | 50 | 51 |
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
