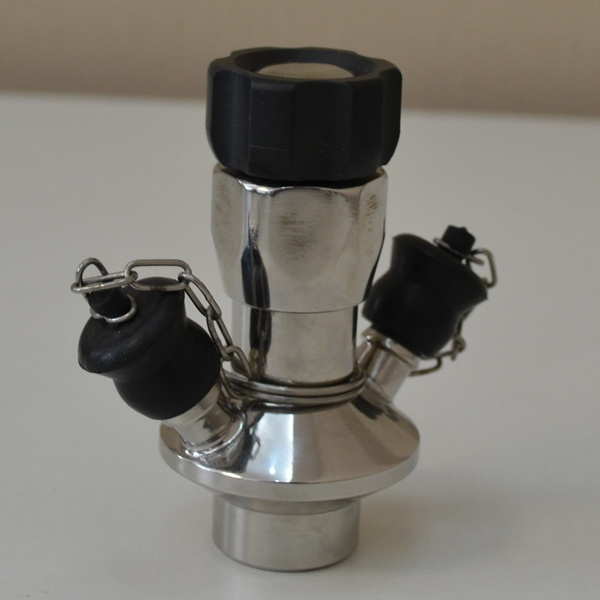

Products Name:Stainless Steel Hygienic Manual Type Sampling Valve
Application
its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.
Sanitary sampling valve has two configurations.
Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.
Feature
1.304 stainless steel,316L stainless steel
2.Silicone O-ring plus plunger to assure a leak proof connection
3.Surface finish polish to sanitary standards
4.Recommended usage in wineries
5.End connections available: clamp and NPT
6.Sizes available: 1" clamp and 3/8" NPT
Technical specification
| Material of Product Wetted | 316L (DIN-1.4404) |
| Material of Non-product Wetted | 304 (DIN-1.4301) |
| Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
| All seal materials comply with FDA 177.2600. |
| Continuous working temperature | -20oC +135oC (EPDM) |
| Sterilization temperature | 150oC (Max 20min) |
| Working pressure | 0~10bar |
| Internal surface | Ra0.8μm |
| External surface | Shot blasting |
| Size | 1/2" 3/4" |
High quality for Stainless Steel Hygienic Manual Type Sampling Valve
Packing&Shipping information and pictures of Stainless Steel Hygienic Manual Type Sampling Valve
Port: Shanghai Port or Ningbo Port,China
MOQ: 5pieces
Supply ability: 5,000 pieces/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging: Shrink wrapped-in seaworthy wooden cased
Delivery time: depends on quantity
Shipping mode:By sea,by air,by express
