Stainless Steel Hygienic Pneumatic Control Valves

Stainless Steel Hygienic Pneumatic Control Valves
Price: US $ 45-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Products Name:Stainless Steel Hygienic Pneumatic Control Valves
Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.

Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.Sanitary reversing valve can
be installed with smart controller.
Technical Specification
Size available

1/2"~4",DN10~DN100

Max. working pressure147psi (10bar)
Control air pressure70 ~ 116psi (5 ~ 8bar)
Working temperature range

EPDM:-20 ~ 135°C

Sterilization temperature

150°C, Max. 20 min

Pneumatic connection

R1/8" (BSP)

Finish Surface

<32Ra (<0.8um); Other finishes available upon request.

End connections

butt welded,tri clamp,male and female

StandardDIN, 3A, SMS, RJT, IDF or others upon request
Flow Medium Parts304,304L,316L (1.4301,1.4307,1.4404)

Standard Design

  1. forged spherical body
  2. Compact design
  3. 360 degree orientation
  4. Mix-proof design, the bodies can be with different diameters.
  5. Over-pressure protection design preventing the pressure fluctuate to 30bar
  6. Easy disassembly
  7. Seat lift type and cavity spray type available

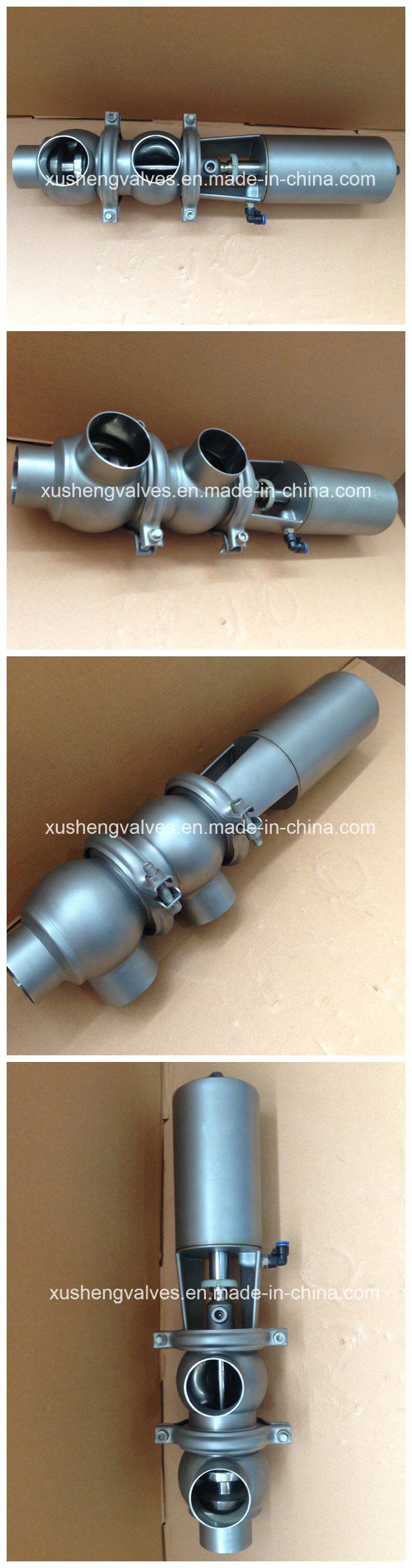

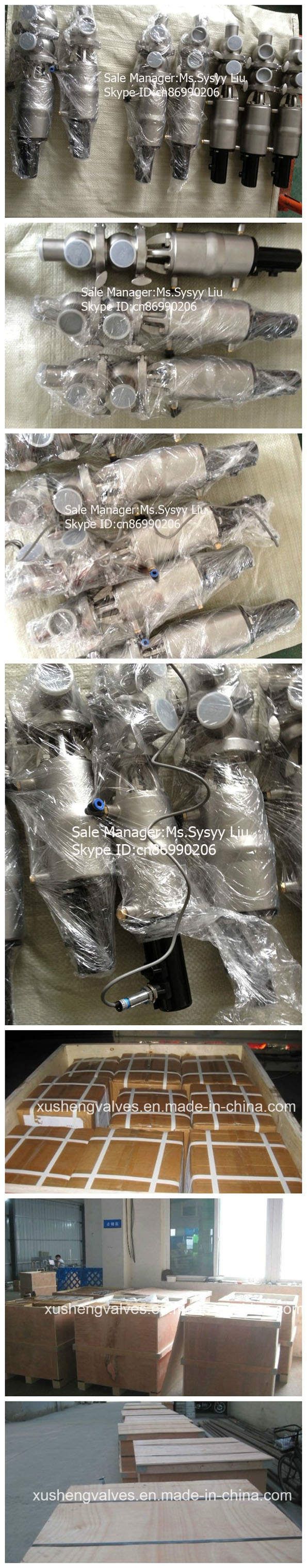

High Quality for Stainless Steel Hygienic Pneumatic Control ValvesPacking&Shipping information and pictures of Stainless Steel Hygienic Pneumatic Control Valves
Port:Shanghai Port or Ningbo Port,China
MOQ:1 set
Supply ability:1,000 sets/month
Payment terms:T/T,Western Union, Paypal, L/C
Packaging:Shrink wrapped-in seaworthy wooden cased
Delivery time:Depends on quantity

Shipping mode:By sea,by air,by express
We specialize  in sanitary valves,pipe fittings and pumps,which is applied for  milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to visit our factory.
  1. Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
  2. Sanitary pipe fittings,such as triclamp ferrule,elbow,tee,reducer,spray valve,sight glass,strainer,ect.
  3. Sanitary Pumps,such as Sanitary Ce
  4. Ntrifugal Pumps,Sanitary Rotary Lobe Pumps
  5. Sanitary Manhole Covers,such as square/round/elliptical manhole covers
1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
2.Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3.Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4.Sanitary Pumps
Sanitary Centrifugal PumpSanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Welcome to contact us for
Stainless Steel Hygienic Pneumatic Control Valves
Contact:Ms.Sysyy Liu
Mobile:0086-13587646794
Prod Model: XS-RV0009
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"~4",Dn10~Dn100
Flow Medium Parts: 304,304L,316L (1.4301,1.4307,1.4404)
Connection Ends: Butt-Welded,Tri Clamp,Male and Female Threa
Actuator: Pneumatic Ss Actuatorelectric Actuator,Manual
Continuous Working Temperature: -20 ~ 135degree Celsius(EPDM)
Working Pressure: 0~10bar (Standard)
Position Sensor: 24V DC,NPN/PNP Position Sensor (2)
Flow Type: L,L/L,T/L,T,L/T,T/T
Connection Standard: DIN, 3A, SMS, Rjt, Idf
Founded in 2005, Wenzhou Xusheng Machinery Industry and Trading Co., Ltd is a modern enterprise which integrates scientificResearch and production. We are one of the new manufactures which are capable of producing high precision stainless steelSanitary equipment and pipeline connection parts.

Xusheng can provide a variety of products, such as sanitary manual/pneumatic butterfly valve, sanitary check valve, sanitaryDiaphragm valve, sanitary ball valve, thin wall visual mirror sanitarypipe fitting, sanitary manhole cover, sanitary pump and otherRelated products. All Xusheng products can be made according to different materials and industrials standard, such as SMS, DIN. 3A, ISO, RJT, IDF, BS, DS and BPE. Our products are widely applied to dairy, food, beer, beverage, pharmacy and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

Xusheng applies the most advanced CNC machine from Japan for processing, cutting machines, automatic equipment, completeInspection equipment, Excellent quality control system, an after-sale service center and strong production capacity. It makes eachXusheng products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.

We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent liquid fittings to meet customers'Requirement by full Passion and first-class service. Moreover, we can also design according to your drawing and samples.

We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits, we welcome worldwide. Friends to give us more Supports and suggestions! !
