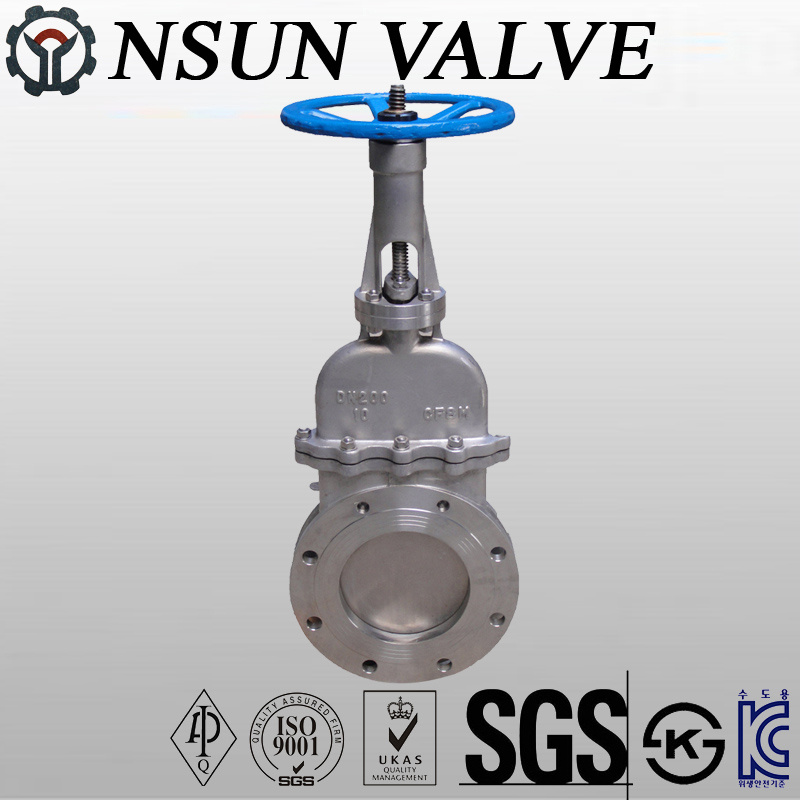

Stainless Steel Knife Gate Valve
Gate valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is asked.
Gate valves are characterized as having either a rising or a non-rising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated.
Non-rising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position. Non-rising stems are used underground or where vertical space is limited.
Knife gate valve
The knife gate valve is a uni-directional wafer valve for general industrial application. The structure of the uni-directional knife gate valves is a wafer style cast monoblock body, with raised face and reinforced ribs for larger nominal diameters for extra body strength. The plate radius of the knife gate valves slide gate has a bevelled cutting edge. As a result, solids can be cut through, achieving a tight seal in the closed position. On request, the thickness of the knife gate valves plate can be increased for higher operating pressures and/or higher quality material can be used.
1.The liftable disc sealing surface can shave sticky things on the sealing surface automatically.
2. The stainless disc can prevent the seal leakage caused by erosion
.
3. the knife gate valve features short structure which saves raw materials for manufacturing and installation space as well as sustains the pipe efficiently.
4.Drive actuators offered for the knife gate valve include hand-wheel with rising or non-rising stem, or alternatively double-or single-acting pneumatic cylinders (spring return), Bevel Gear, chain gear and electric actuators.
5. the medium of knife gate valve is water, kerosene and other liquids whose viscosity is weaker than water.
1) Sizes: 1/2 - 24"
2) Rating: 10K-20K
3) Body: SUS301, SUS304, SUS304L, SUS316, SUS316L, WCB
4) Screen: SUS301, SUS304, SUS304L, SS316, SUS316L
5) End Connection: RF
6) Application: Industrial Usage
Zhejiang Nsun Valve Co., Ltd., a professional valve producing enterprise specializing in design, development and production, can produce high-precision liquid equipment, such as gate valves, check valves, ball valves, globe valves, foot valves, threaded valves, strainers and special valves of non-standard.
Nsun has introduced lots of advanced numerically control equipments into the production line, for instance, the ultrasonic thickness gauge, chemistry analyzer and high-tech CAD valve computer designer.
According to different requirements of clients, all of Nsun's products are developed in accordance to GB, API, ANSI, JIS and KS respectively. The materials are available for all kinds of steels: Carbon steel, stainless steel, alloy steel and so on. The transmission mode can be chosen from manual, worm gear, pneumatic, hydraulic, electric.
Nsun has involved in valve business for more than 10 years and has always aimed to produce high quality products and to keep our clients satisfied.
Nsun believes in "unlimited innovation makes the red sun never sets" and the tenet of Nsun's service is always customers-oriented.
Sincerely welcome new and old customers to cooperate with us and let's create a brilliant future.
