Stainless Steel Manual Butterfly Valve

Stainless Steel Manual Butterfly Valve
Price: US $ 18/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union



Application:

This valve is sanitary, automatic or manual handle valve, widely used in  food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.



Working principle:

The valve is mechanically locked in its 4 position of open or close through four multi-functional positioning rod maual operation. It can contronl the flow of the medium





Material:

Steel parts:      Stainless 304\316L
Sealing:           EPDM. (standard)

                       SILICON,FDM, HNBR(CHOOSE).





Advantages:



Connection types:



  1. Welded.
  2. Clamped
  3. Screw or threaded
  4. welded - srew
  5. Flange

To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made toDN11850, IDF / ISO, SMS international standard size.

Operation Type:



  1. Manual:                         lever or duck-billed
  2. Pneumatic actuator:    stainless teel or plastic with control box or not.
  3. Electric actuator:         sigle action or double action

Features of Pneumatic actuator:

  1. Normally opened : the spring is OPEN and pneumatic OFF
  2. Normally closed:the spring is OFF and pneumatic OPEN
  3. With signal feedback inductive proder / sensor for option
  4. Compact appearance, small volume, large torgue
  5. Simple and convenient assembly

Technical Parameter:

  1. OD Range:                            DN25~ DN200, 1"~ 8"
  2. Anti-pressure:                       10Bar
  3. Compressed Air supply:        MIN:4 BAR,    MAX:8BAR
  4. Pneumatic Actuator torgne: 40Nm
  5. Finishing degree:

              Cutting: Ra1.5 ~ 3.2um

              Polish:  Ra0.4~ 0.8um

Requirements for compressed air quality that the executor needs:

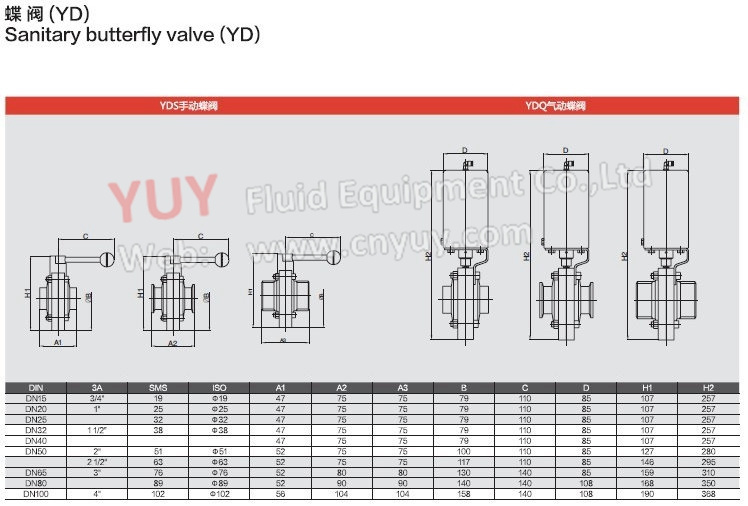

 Specifications of butterfly valve:





Different butterfly valves:

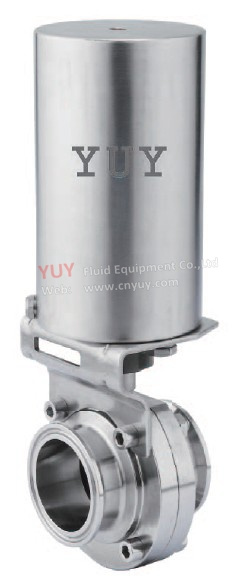

1.Sanitary butterfly valve with pneumatic actuator:

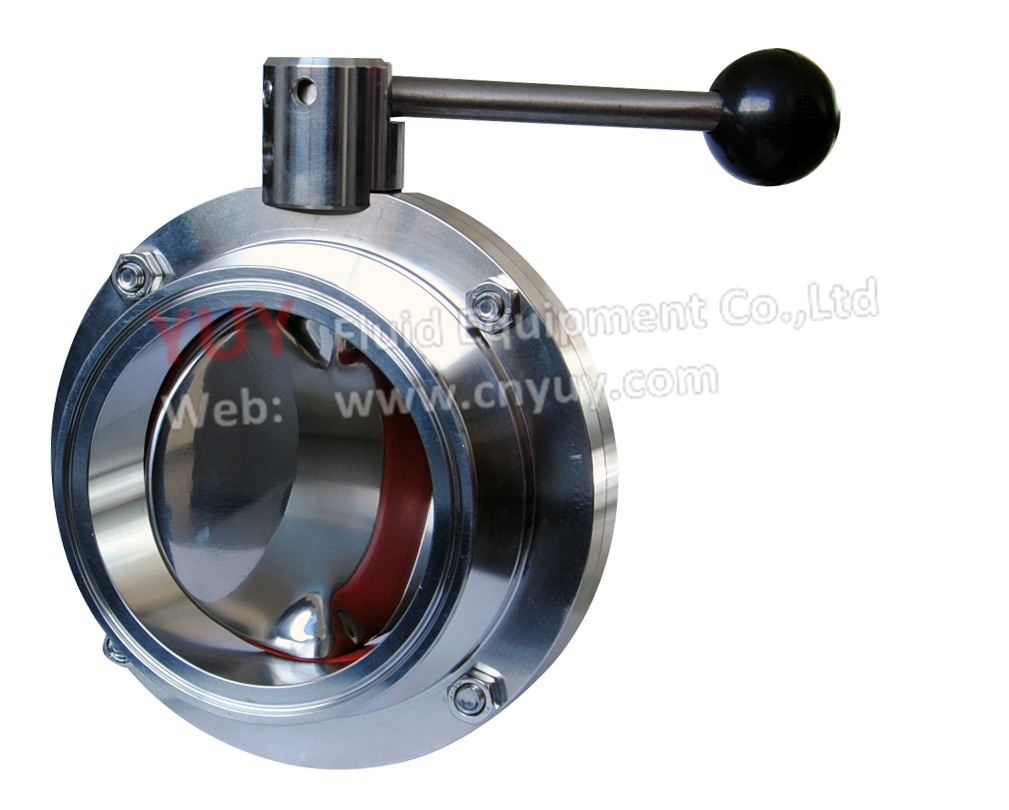

2.Sanitary butterfly valve with manual level:





Prod Model: YD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3/4"-10"
Material: Ss304/Ss316L
Connection Form: Welding
Structure: Centre Sealing
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Food Industrial Usage
YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.

YUY is specialized in Manufacturing

Sanitary Pumps

Sanitary Valves

Sanitary Pipe fittings etc.,

Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.

For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.

All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.

In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.

Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.
