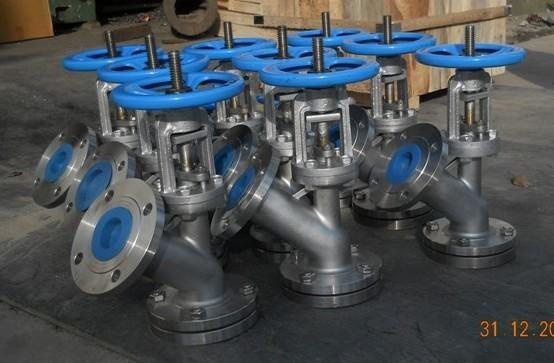

Stainless Steel Manual Dump Valve
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Characteristics
1, the dump valve is ball with circular channels as open-close, sphere with the valve rod rotation realize on-off movement.ball valve;
2,dump valve opening and closing is a perforated sphere, perpendicular to the axis of rotation of the channel, so as to achieve the aim of opening and closing the channel.Dump valve is suitable for the sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, alkali, aqua regia any strong corrosive medium, etc.Nominal diameter | PN 0.6-1.6(MPa)(main shape size and the connection size( mm) | Weight |
DN | L | D | D1 | D2 | f | b | z-φd | D0 | H | kg |
32 | 140 | 135/160 | 100/130 | 78/115 | 3/3 | 18/20 | 4-φ14/4-φ18 | 200 | 130 | 9 |
40 | 160 | 145/185 | 110/150 | 85/125 | 3/4 | 18/22 | 4-φ18/4-φ18 | 230 | 135 | 15 |
79 standard | 50 | 170 | 160/205 | 125/170 | 100/140 | 3/4 | 20/24 | 4-φ18/4-φ18 | 250 | 140 | 18 |
80 | 200 | 195/245 | 160/200 | 130/175 | 4/5 | 22/26 | 4-φ18/8-φ18 | 300 | 205 | 35 |
69 standard | 50 | 170 | 160/230 | 125/190 | 100/140 | 3/4 | 20/24 | 4-φ18/8-φ14 | 250 | 140 | 18 |
80 | 200 | 195/245 | 160/210 | 130/175 | 4/5 | 22/26 | 4-φ18/10-φ14 | 300 | 205 | 35 |
100 | 280 | 215/280 | 180/240 | 150/210 | 4/5 | 24/28 | 8-φ18/8-φ23 | 350 | 230 | 44 |
| Prod Model: |
FL641F/W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
Dn25-Dn250 |
| Standard Or Nonstandard: |
Standard |
| Certificate: |
ISO9001, CE, RoHS |
| Delivery Time: |
in 45days |
| Warranty: |
12months |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
