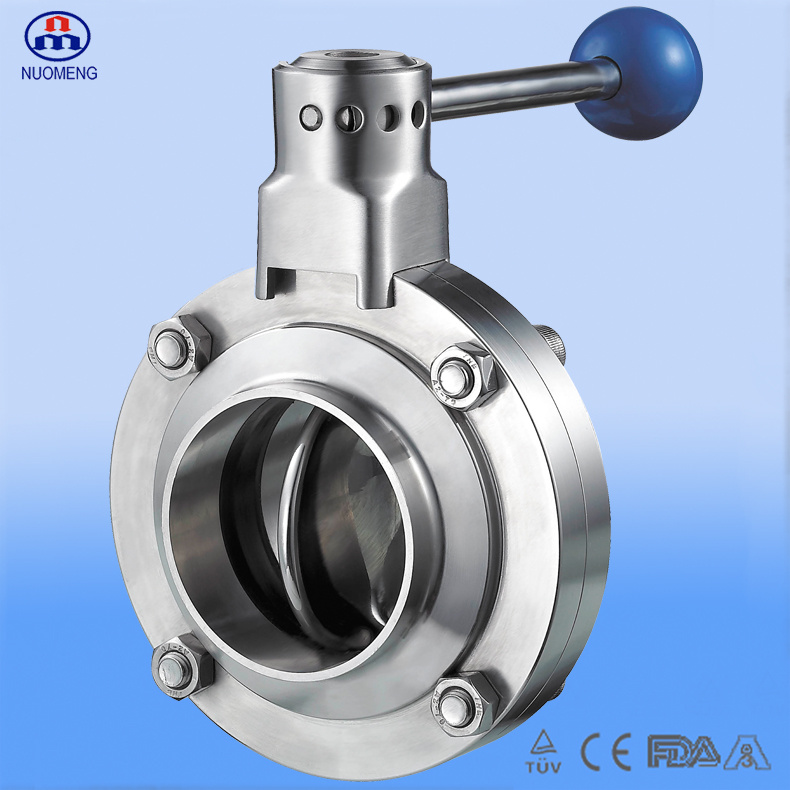

Stainless Steel Manual Welded Butterfly Valve (DS-No. RD5213)

Stainless Steel Manual Welded Butterfly Valve (DS-No. RD5213)
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Sanitary Stainless Steel Manual Welded Butterfly Valve

Application:
The series of this valve is a kind of sanitary manual which are widely used in stainless steel pipeline system to control and regulate medium flow.

Work principle:
This kind of valve are handled by manual. NUOMENG offers three types handle, such as stainless steel muti-position handle, plastic muti-position handle, and pulling handle.
Muti-position handle regullates the valve by 15 degree in its open or close 12 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning, in its open or close four position, also achieves control of medium flow purpose.

Material:
Steel parts: Stainless steel 304, stainless steel 316L
Seal: Silicone(VMQ), Fluoroelastomer(FPM), EPDM

Stanard Design:
Various standards of valves can be provide can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJ, ASME/BPE etc.
The parts of valve includes two pieces body of valve, disc, gasket of valve disc, bush, and the entire valve is assemble together with bolts and nuts.



DS-No.RD5213
SizeABK*KCLT
3/4"78.019.0510*1050.0136.01.45
1"78.025.410*1050.0136.01.45
1 1/4"78.031.810*1050.0136.01.45
1 1/2"86.038.110*1050.0136.01.45
2"100.050.810*1052.0136.01.45
2 1/2"115.063.510*1056.0136.01.7
3"128.076.210*1058.0163.02.2
4"154.0101.610*1064.0163.02.2
5"186.0127.014*1470.0185.02.2
6"225.0152.414*1480.0185.02.8


Prod Model: RD5213
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Design: Ds
Working Pressure: 0-10bar
Sealing Material (Standard): Vmq
Sealing Material (Option): EPDM/FPM
Working Temperature Of Vmq: -50 to 180 Degree Celsius
Working Temperature Of EPDM: -20 to 135 Degree Celsius
Working Temperature Of FPM: -30 to 230 Degree Celsius
Inside Surface Treatment: More Than or Equal to 0.4-0.8 Micrometer
Surface Treatment: More Than or Equal to 0.8-1.6 Micrometer
Connection Form: Welding
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Application: Food,Beverage, Pharmaceutical, Chemical Industry
Material Of Seal Surface: Vmq, FPM, EPDM,PTFE
WenZhou NUOMENG Technology Co., Ltd. is a factory which professionally produces high precision liquid equipments in China. The brand "NUOMENG" has highly valued from customer all over the world.

In these years, under their technicians' hard work, the company introduced in advanced LG MAZAK CNC machines, and produce mainly NUOMENG hot-pressed end tie-ins, valves and so on. All of our products produced according to the techenical parameter provided by our customers, and strictly according to ISO, DIN, IDF, 3A and SMS industrial standards. All technical guidelines keep ahead in this industry and reach international advanced standards. The products are widely used in pharmacy, beer, food, dairy, beverage, cosmetics, chemical industries and so on.

Facing furious market competition, the company takes "Creat best quality, satisfy customers" as its duty, and "Honesty, Trust" as basic principles all the time. Enduring business waves, the company is developing and enlarging constantly.

Our quality is from our efforts! Based on high quality products, competitive price, and satisfactory service, the company sincerely welcomes friends around the world to cooperate and achieve mutual success!
