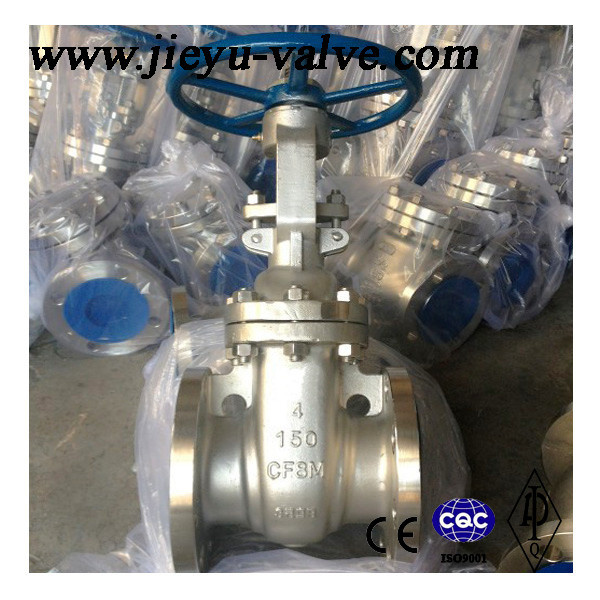

Stainless Steel OS&Y Gate Valve

Stainless Steel OS&Y Gate Valve
Price: US $ 91/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
Stainless Steel CF8/304 150LB 4inch Gate Valve



Specification:
Size: 1/2"-30"
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)

Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system

Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection:  ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc


NO.
Part NameMaterial
01BodyASTM A216WCBASTM A351 CF8ASTM A351 CF8M
02Seat RingASTM A216+13CrASTM A351 CF8ASTM A351 CF8M
03WedgeASTM A216+13CrASTM A351 CF8ASTM A351 CF8M
04StemASTM A276 420ASTM A182 F304ASTM A182 F316
05Gasket304+Graphite304+Graphite316+Graphite
06BonnetASTM A216WCBASTM A351 CF8ASTM A351 CF8M
07StudASTM A193 B7ASTM A193-B8ASTM A193-B8M
08NutASTM A194 2HASTM A194-8ASTM A194-8M
09BackseatASTM A216+13CrASTM A351 CF8ASTM A351 CF8M
10PackingGraphiteGraphiteGraphite
11PinC.SS.SS.S
12Gland BoltASTM A193 B7ASTM A193-B8ASTM A193-B8M
13Gland NutASTM A194 2HASTM A194-8ASTM A194-8M
14BushingASTM A216 F6aS.SS.S
15GlandASTM A216WCBASTM A351 CF8ASTM A351 CF8M
16Stem NutZcuAl10Fe3 BronzeZcuAl10Fe3 BronzeZcuAl10Fe3 Bronze
17LubricatorCuCuCu
18Retaining NutC.SC.S+CrC.S+Cr
19Handwheel ASTM A47ASTM A47ASTM A47
20H.W. Lock NutC.SC.S+CrC.S+Cr

Prod Model: Z40W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details: Plywood or as The Customers' Requirement.
Delivery Detail: Depend on The Quantity
Painting: Slivery or as The Customer's Requirements
Certificates: API ISO CE Ts
OEM: Available
Material: Stainless Steel
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
