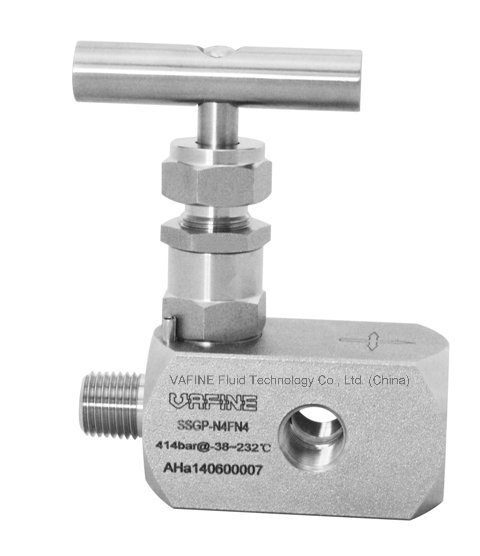

Stainless Steel Plug Tip Gauge Valves
GP Series Plug Tip
1/2 to 3/4 in. and 6 to 20mm sizes
Two stem design: nonrotating lower stem reducing the total friction area between the packing and the lower stem
Packing below the threads prevents lubricant washout
Upper stem threads are cold rolled for high strength and smooth operation
Lower stem hardened needle for positive shut off
Maximum working pressure: 6000 psig (413 bar)
Temperatures up to 450ºF (232ºC) with PEEK seat
Replaceable seat and stem tip design
Roddable, straight-through orifice for maximum flow
Every VAFINE valve is tested with nitrogen for maximum working pressure
