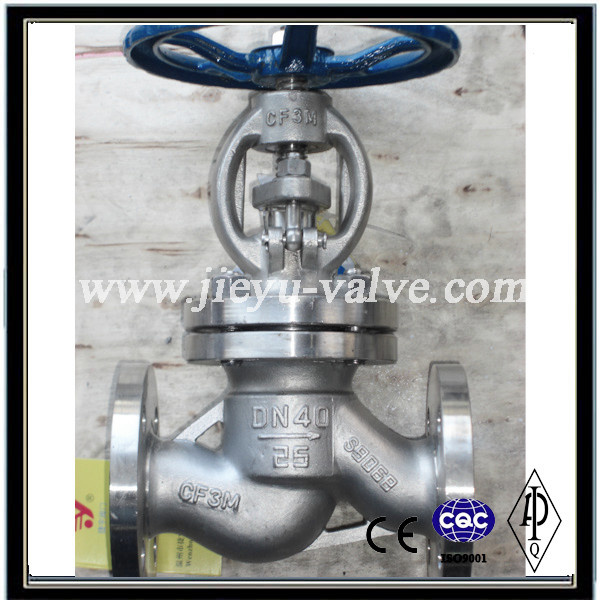

Stainless Steel Pn16/Pn25/Pn40 Flange Globe Valve

Stainless Steel Pn16/Pn25/Pn40 Flange Globe Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

Stainless Steel PN16/PN25/PN40 Flange Globe Valve


Specification:

Size:  DN15-DN1200

Model:J40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.1156 (LCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C).Etc

Type: Rising Stem Flange end RF/FTJ/FM

Operation: Handwheel, gear worm ,Electric operated



Standard:
Design & Manufacture Std.:
DIN3352,BS 1873,Etc
Face to Face Std.: DIN 3202, BS2080 F1, F2,Etc
End Connection Std.: DIN2543-2548,Etc
Test Standard: ISO5208, BS 6755 DIN 3230,Etc


Products:


Production Flow :

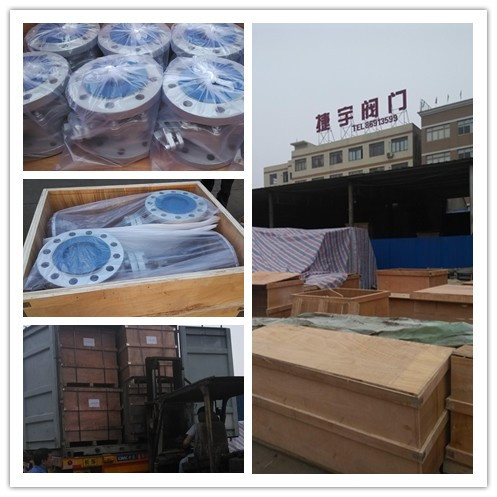

Packaging:


NO.Part NameMaterial
01BodyASTM A216WCBGS-C25,CF8,CF8M
02Seat RingASTM A216+13Cr
03DiscASTM A105+13CrA105,SS304,SS316
04Split RingC.S
05Disc CoverC.S25#,SS304,SS316
06StemASTM A182 F6a13Cr,SS304,SS316
07Gasket304+Graphite304+Graphite
08BonnetASTM A216WCBA105,SS304,SS316
09StudASTM A193 B7
10NutASTM A194 2H
11BackseatASTM A216+13Cr
12PackingGraphiteGraphite
13BushingASTM A216 F6a
14GlandASTM A216WCBCu Alloy
15PinC.S13Cr,SS304,SS316
16Gland BoltASTM A193 B7
17Gland NutASTM A194 2H
18Stem NutZcuAl10Fe3
19ScrewC.S
20Handwheel ASTM A395C.S
21H.W. Lock NutC.S25#

Prod Model: J41W/J41Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details: Plywood or as The Customers' Requirement.
Delivery Detail: Depend on The Quantity
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Standard: GB
Sealing Form: Gland Packings Globe Valve
Application: Plug Disc Type Globe Valve
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
