Specifications

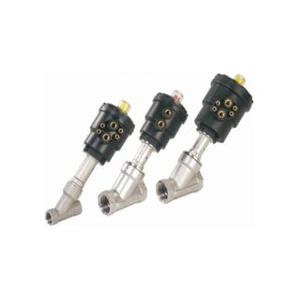

1.Stainless less Angle Valve Water Valve Pneumatic Angle Seat Valve
2.angle type safety valve;
3.two-way angle valve.
Model No: | DQ-Z |
| Place of Origin: | China (Mainland) |
| Power: | Pneumatic |
| Standard or Nonstandard: | Standard |
| Pressure: | Others |
| Structure: | Angle |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Brand Name: | ACE |
| Pressure Range: | 0-16Bar |
Data |
| Interface | Inter Bored | Kv(m3/h) | (bar)Max working pressure | (bar)Min Control Pressure | (Φmm) Actuator | Flow Direction | Control Way |
| G3/4 | 20.0 | 8.0 | 0-16 | 2.7 | 5.0 | |
|
| G1 | 25.0 | 19.0 | 0-16 | 2.0 | 63 |
| G1 1/4 | 32.0 | 27.5 | 0-16 | 2.0 | 63 |
| G1 1/2 | 40.0 | 42.0 | 0-16 | 2.0 | 63 |
| G2 | 50.0 | 52.0 | 0-16 | 2.0 | 80 |
| G2 1/2 | 65.0 | 77.0 | 0-14 | 1.6 | 100 |
DIMENSION LIST |
| DN | L | L1 | L2 | H | D | Actuator |
| 15 | 180 | 120 | 64 | 137 | 50.5 | Φ50 |
| 20 | 185 | 140 | 64 | 145 | 50.5 | Φ50 |
| 25 | 210 | 160 | 80 | 173 | 50.5 | Φ63 |
| 32 | 240 | 176 | 80 | 210 | 50.5 | Φ63 |
| 40 | 250 | 190 | 80 | 260 | 50.5 | Φ63 |
| 50 | 330 | 210 | 100 | 301 | 64 | Φ80 |
Ace Stamping & Machine Co., Inc. of Racine, WI, ISO 9001 certified since 1996, offers high quality precision metal stampings with a full featured tool room. By having full control from start to finish, Ace is able to meet the highest requirements of our customers. And with over 50 years of experience and highly efficient procedures, we are able to provide the highest quality along with very competitive pricing.
Our full-service tool room allows us to create progressive and compound blank dies to the tightest tolerances. Through a careful planning process, these dies are made to reduce and/or minimize secondary operations. Thus, allowing us to pass cost savings onto our customers.
From prototyping to the largest quantities, we want to help you. As a customer, we know how important it is for you to be able to rely on your supplier. That is why Ace has set the standard of reliability with a 98.5% on-time delivery rate.
We don't make you wait, we deliver!
ACE industry Co., Ltd. is a professional manufacturer for OEM parts, including OEM metal stamping, pressing, punching, casting, forging, machining, deep drawn and stamped-welded products with various surface treatments, etc. Our products are exported to USA, Canada, France, Italy, Spain, Holland and other markets, which are used in machining, construction, electronics, furniture, etc.
Our office lies in Shanghai which can help us to offer better service for the customers from all over the world. Our factory is located in Zhejiang province, nearby Ningbo port and Shanghai port, which can save goods transportation time and cost.
We have full range of advanced machinery and equipments: punching machines, welding, CNC machines, milling & grinding machines. And we also have experienced technical staffs, who are engaged in technical development. Our skilled workers, professional engineers, R&D center and excellent foreign trade team always keep the passion to support our customers.
ACE always insist on the concept of quality first & customer foremost, and provide high quality products, reasonable price, timely delivery and good service for customers. We hope to be your office in China.
