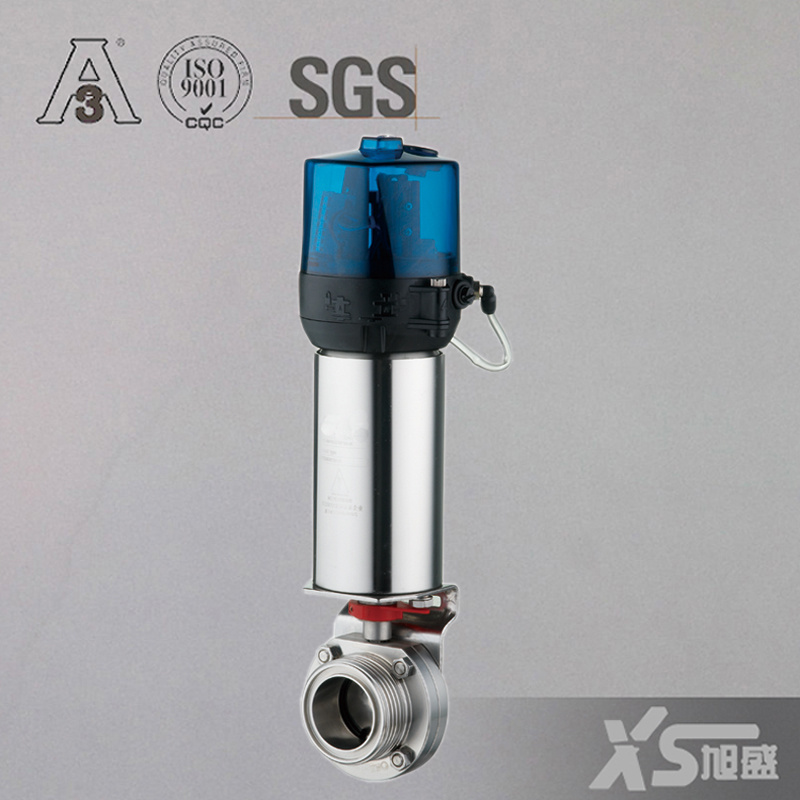

Stainless Steel Pneumatic Butterfly Valve with Intelligent Head

Stainless Steel Pneumatic Butterfly Valve with Intelligent Head
Price: US $ 13-15/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Product Name:Stainless Steel Pneumatic Butterfly Valve with Intelligent Head
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Technical Parameters
Standard3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel partsAISI304/AISI316LProvided  with material inspection report
Other steel partsAISI304
Size1/2"~6",DN10~DN150
Seal materialEPDM/VMQ/FPMAll seals material comply with FDA21CFR117.2600
Working pressure≤10bar(145psi)
Supply pressure for air actuator5~8(0~116psi)
Working temperatureEPDM:-14~248ºF(-10~120ºC)
VMQ:-58~356ºF(-50~180ºC)
FPM:22~446ºF(-30~230ºC)
Other materials are avaible upon request
Sterilization temperature302ºF(150ºC,max 20min)
Outside surface treatmentRa16~32uin(o.4~0.8um)
Inside surface treatmentRa32~64uin(o.8~1.6um)
Connetion endsbutt-weld,clamped ends,male ends, flange ends
Pneumatic headNormally closed(NC)-Air to open,spring to close
Normally open(NO)-Air to close,spring to open
Air to air(AA)-Air to open,air to close

Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.
Our Service

On Samples
Buyer bear the air fee, but this fee will be reduced from order directly
On After SalesFree replacement if there is any quality problem
On DeliveryNever delay delivery time
On MaterialsEnsure material pure
Ensure material pureWelcome

High quality for Stainless Steel Pneumatic Butterfly Valve with Intelligent Head
Packing&Shipping information and pictures of Stainless Steel Pneumatic Butterfly Valve with Intelligent Head
Port: Shanghai Port or Ningbo Port,China
MOQ: 5Sets
Supply ability: 5,000 pieces/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging:  Shrink wrapped-in seaworthy wooden cased
Delivery time: depends on quantity
Shipping mode:By sea,by air,by express
We specializes in sanitary valves,pipe fittings and pumps,which is applied for  milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to any enquiry and visit our fact
Sanitary Manhole Covers,such as square/round/elliptical manhole covers
Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
Sanitary pipe fittings,such as triclamp ferrule,elbow,tee,reducer,spray valve,sight glass,strainer,ect.
Sanitary Pumps,such as Sanitary Centrifugal Pumps,Sanitary Rotary Lobe Pumps

We maily produce a series of valves,pipe fittings and pumps as follws.

1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary Tee
Sanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3. Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4. Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Welcome to contact us for Stainless Steel Pneumatic Butterfly Valve with Intelligent Head

Contact:Ms.Sysyy Liu
Mobile:0086-13587646794
Prod Model: XS-BV00028
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Standard: DIN, 3A, SMS, Rjt,ISO,Idf
Flow Medium Parts: 304, 304L, 316L (1.4301, 1.4307, 1.4404)
Port Size: Dn10-150 or 1/2"-150
Way Of Connection: Butt-Welded,Tri Clamp, Male and Female Thread
Gasket: EPDM/Vmq/FPM
Working Pressure: 10bar (145psi)
Temperature Range: -20 Degree Celsius to 120 Degree Celsius
Processing Machine: Forge Processing, Advance CNC Machine
Working Principle: Remote-Controlled Operation by The Driving Gear or
Pneumatic Head: Normally Closed,Nornally Open,Air to Air
Connection Form: Welding
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Milk, Beer, Juice, Phramacy
Founded in 2005, Wenzhou Xusheng Machinery Industry and Trading Co., Ltd is a modern enterprise which integrates scientificResearch and production. We are one of the new manufactures which are capable of producing high precision stainless steelSanitary equipment and pipeline connection parts.

Xusheng can provide a variety of products, such as sanitary manual/pneumatic butterfly valve, sanitary check valve, sanitaryDiaphragm valve, sanitary ball valve, thin wall visual mirror sanitarypipe fitting, sanitary manhole cover, sanitary pump and otherRelated products. All Xusheng products can be made according to different materials and industrials standard, such as SMS, DIN. 3A, ISO, RJT, IDF, BS, DS and BPE. Our products are widely applied to dairy, food, beer, beverage, pharmacy and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

Xusheng applies the most advanced CNC machine from Japan for processing, cutting machines, automatic equipment, completeInspection equipment, Excellent quality control system, an after-sale service center and strong production capacity. It makes eachXusheng products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.

We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent liquid fittings to meet customers'Requirement by full Passion and first-class service. Moreover, we can also design according to your drawing and samples.

We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits, we welcome worldwide. Friends to give us more Supports and suggestions! !
