Product Description

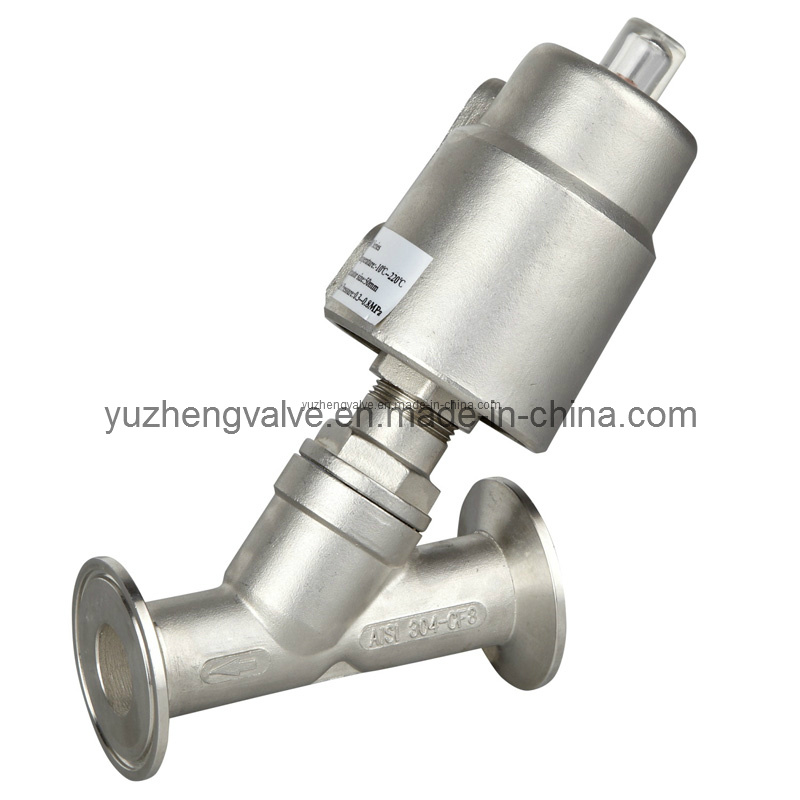

2/2-WAY PISTON-OPERATED ANGLE SEAT VALVES FOR NEUTRAL AND AGGRESSIVE LIQUIDS AND GASES
1. Clean the pipes carefully from any residue, dribble or welding residue, to
Avoid any damage to the seal.
2. To be installed as required, preferably with actuator in upright position
3. Connect the pipes according to the reference points (flow direction)
Found on the valve body. Only disassemble the actuator if required by customer.
4. Before taking the valve apart, depressurize the media supply and pilot air
Supply piping system
Media
| Air, Gas, Oil, Steam
|
Adjustable pressure range
| 0.30~0.80Mpa
|
Working pressure range
| 0~1.60Mpa
|
Temperature of media
| -10~180°C
|
Material of body
| SS304, SS316
|
Material of sealing
| PTFE, NBR |
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
