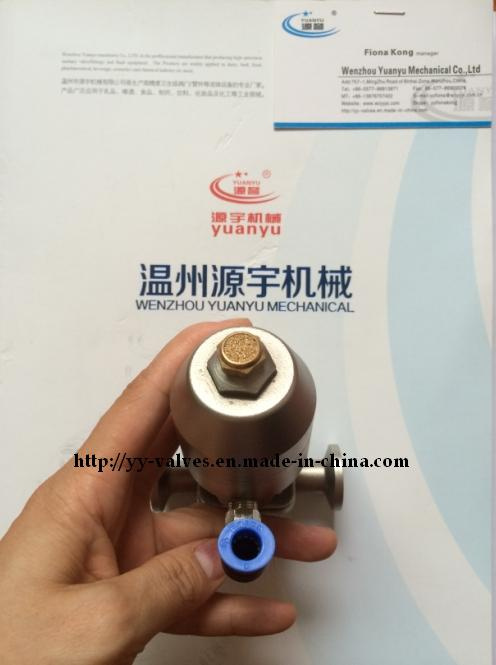

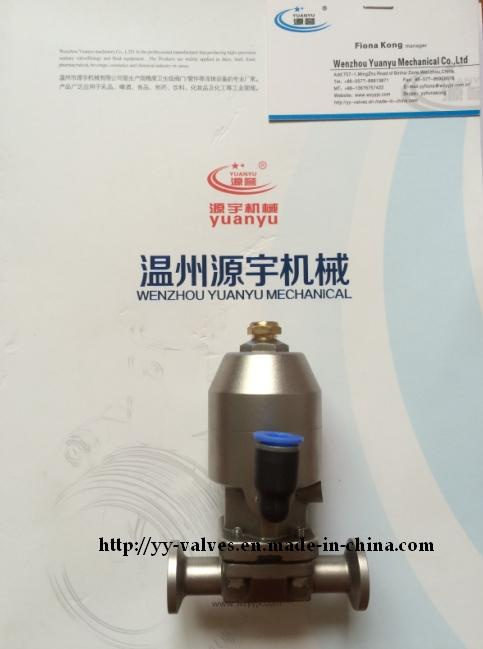

Stainless Steel Pneumatic Diaphragm Valve for Sampling
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Stainless Steel Pneumatic Diaphragm Valve For SamplingBody Configuration: 2-waysConnection: Clamp*ClampMaterial: 316L Stainless SteelSize: DN8,DN10Diaphragm : EPDM+PTFE/EPDMPneumatic actuator: Normally Close (Normally O pen , Double actuation )Typical Applications:1/Pharmaceutical manufacturing
2/Bioprocessing
3/Cosmetic
4/Brewery Service
5/Food and Beverage
6/Semiconductor
7/High Purity Chemicals
As a manufacturer, we can produce according to customer's requirement.
CE Certificate can be provided.
| Technical Data |
| Material | Body Of Valve | Investment Casting
316L(EN1.4409 CF3M) | Can provide material inspection report |
| Sealing Material | Standard | EPDM+PTFE | Adopt sealing material with all the
seal material the FDA 117.2600 |
| Option | EPDM |
| Pressure | Pressure of work | 0-10 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
| Sterilization temperature | 150ºC(Max 20min) |
| Surface Teatment | Inside surface treatment | Ra≤0.375µm (SF4) |
| Outside surface treatment | Sand blasting / Ra ≤0.5 µ m (SF1) Can be chosen |
| Connection | Diameter Standard | DIN, 3A, ASME/BPE, ISO/IDF, BS/RJT, SMS,etc |
| Connection mode: | Clamp ends (Butt weld* Butt weld can be chosen) |
| Control Function | Manually Operated |
| Pneumatic Actuator Control (Normally Open, Normally Close, Double actuation) |
| Body Shape | Staight Type (T type, U type, L type, Multi-way )Can be chosen
|
| Prod Model: |
YYDV-963 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: Dn8-Dn10: |
Material: AISI316L |
| Material: |
Stainless Steel |
| Actuator: |
Pneumatic |
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
