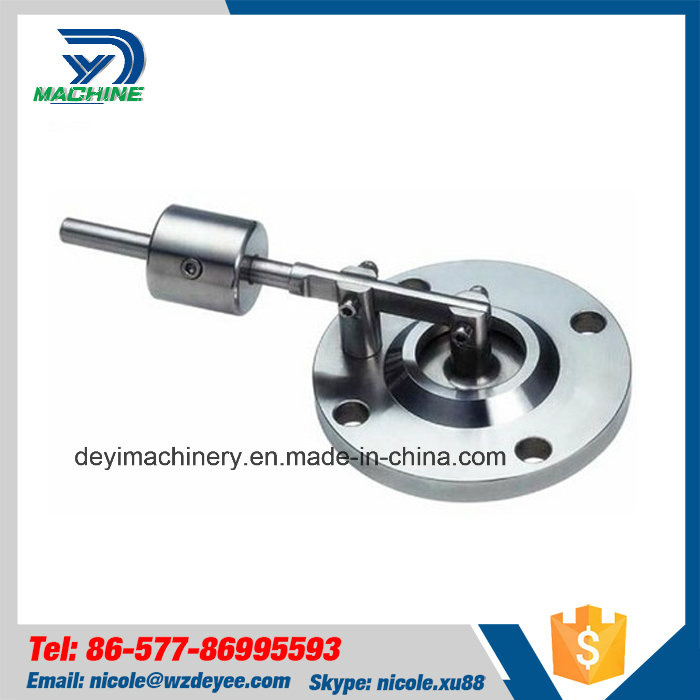

Product name: Stainless Steel Sanitary Anti-Vacuum Valve(DY-V148)
1. Material: SS304, SS316L
2. Normal pipe size: DN50-DN150
3. Connection: Flange
4. Standard: DIN, SMS, IDF, ISO
5. Working vacuum degree: 50-300mmHg
6. Working temperature: -10ºC to 80ºC
7. Breath-in capacity: 300m³/h
8. Design
The advantages of an integrated anti vacuum valve are lower initial costs, superior hygiene and smaller area required for seat valve. The size and setting of the anti vacuum valve is based on the tank design data, cleaning procedure and process requirements. The anti vacuum valve is produced in a sanitary and robust design.
9. Application:
The anti vacuum valve is used for minimizing the risk of implosion of tanks exposed to vacuum e. G. During emptying, cool rinsing after hot-cleaning (max. 85° ) or caustic cleaning in a CO2 atmosphere. The anti vacuum valve can be applied on any closed tank.
10. Benefits:
1) Valve seat design ensures operational reliability
2) Sensitive vacuum set points for precise operation
3) Fully cleanable with CIP system
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
