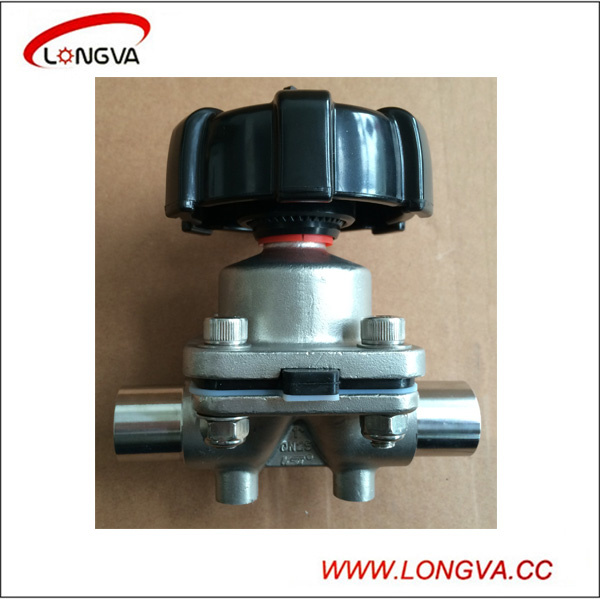

Stainless Steel Sanitary Butt Weld Diaphragm Operated Valve

Stainless Steel Sanitary Butt Weld Diaphragm Operated Valve
Price: US $ 19.5-20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Product name: Sanitary clamp diaphragm valve


1. Application:

Sanitary diaghragm valves are widely used in the process of producing wine, dairy, and beverage, food industry as well as in pharmaceutical field, and play the role as contronl box switch in order to contronl the pipeling fluid.

2. Working principle:

Diaghrahm valves is closed in a normal state, the diaghragm close to the body cavity, closed pipe flow leads to the path, Whenb the diaghragm valve needs to clean ti western open, just need to manuallt roteting the hand wheek or drive cotronl acuator to stimulate the stem upward movement if the spherical diaghragm followed up bending.
So that the valve to form aconduction state, shell realization cleaning and the purpose to open. The diaghragm to the lower part of the body cavity and the upper valve cover cavity seperated from the stem at the upper part of the diaghragm, spool and other parts from the corrosive media, eliminating the need to packing seal structure, and will not produce the media leak. Optimized body design, so that the cleaning solution completely excretion. There is no retention.

3. Material:

Steel parts: Stainless steel 304, stainless steel 316L.
Sealing: EPDM+RTFE this sealing adopt the material imported from other countries. (can comply with the standards of FDA177.2600). And we can bolted the sealing perfectly the whole set sealing. And the part of the sealing touch with the medium is made of PTFE, has good performance in cold temperature (-25Degree) and in hot temperature. And can bear variety of chemical agents as well as good abrasion performance
Prod Model: longva2397
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle: Manual
Actuator: Manual
Connection: Welded Diaphragm Valve
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Standard: FDA
Function: Manual,Pneumatic
Wenzhou longva light industrial machinery Co., Ltd.(longva group., Co., Ltd) is a research, development, production, sales as one of the modern enterprise.We have top-ranking engineer with health-class high-precision production equipment, professional at stainless steel valves, pipe fittings, pipe connectors, faucets and so on.Our products export to more than 30countries, and get well reputation.We have our own export licence.

The products are manufactured according to the industrial standard of ISO, DIN, idf SMS and 3A, are widely used for breast, beer, pharmacy, biology, chemical industry, drink, food and cosmetics such industries.Our enterprise has passed ISO9001-2000 international quality managing system authentication, the products are according with GMP, HACCP and QS.

Firm and persistent longva human will strive continuously, absorb national and foreign advanced technical high diathesis professionals to intensify the inner management and grand the team, so as to attend the global competition with active pose and rich strength to provide and better for customers.

Our quality comes from our efforts!With superior products, reasonable price and satisfactory services, our company welcome your visiting and sincerely await your arrival.
