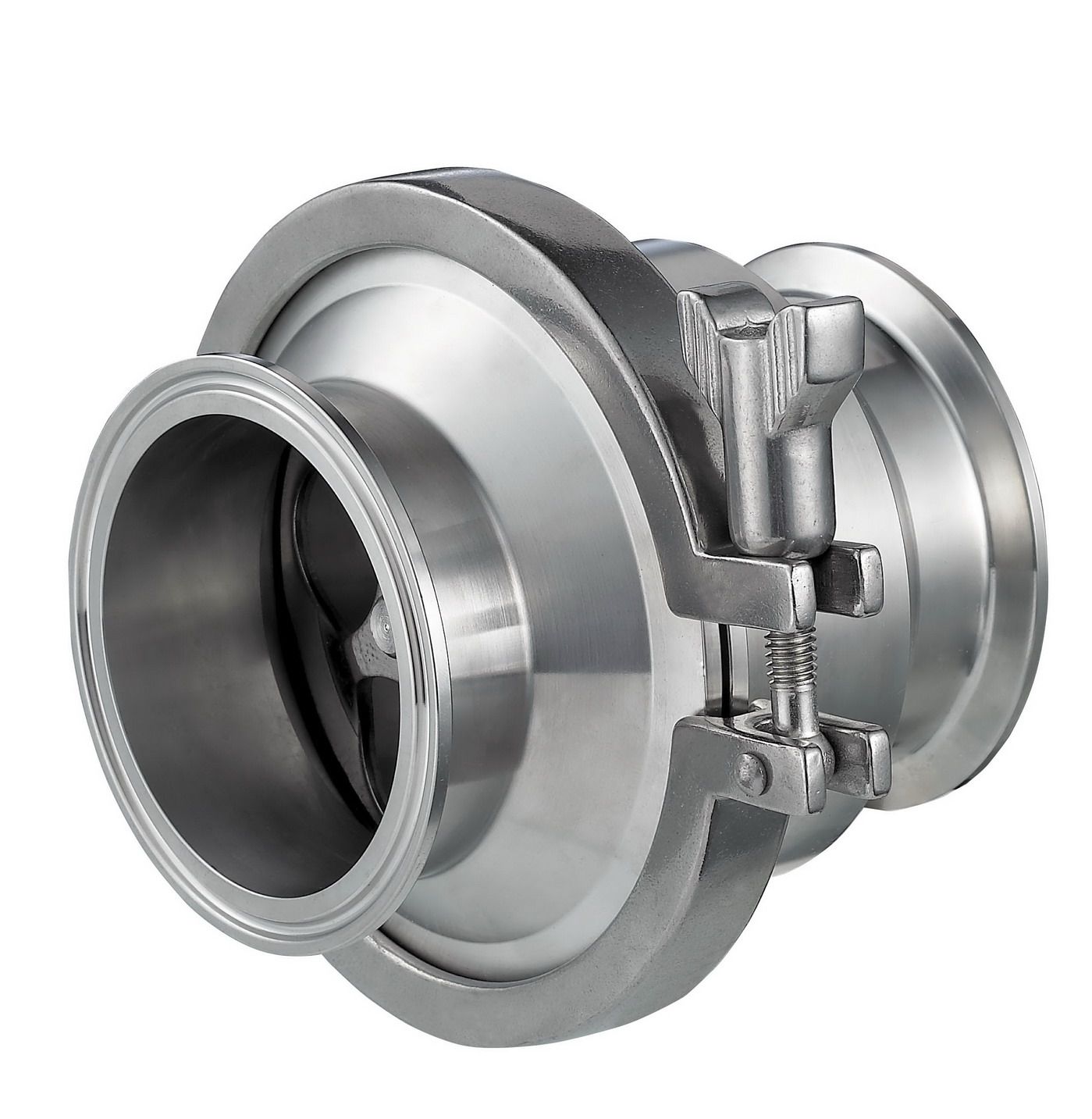

Stainless Steel Sanitary Clamped Check Valve

Stainless Steel Sanitary Clamped Check Valve
Price: US $ 15-15/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union
Check Valve

Application
Sanitary check valve, also known as "non-return valve", is designed for use in process piping installations to prevent reverse flow. AV-3C series is a spring check valve with tri-clamp ends.

Materials
Product wetted steel parts: SS 316L / 304
Other steel parts: SS 304
O ring and gasket: EPDM, comply with FDA21CFR177.2600

Options
O ring and gaskets can be Silicone or Viton, all complying with FDA 21CFR177.2600.
Connection ends: Butt-welded, sanitary clamp, threaded, flanged, union or others upon request.

Working Principle
A check valve opens when the pressure below the valve plug exceeds the pressure above the valve plug and the spring force. The valve close when pressure equalization has been achieved.

Design Features
The stainless steel valve body ensures nonporous, smooth surfaces and dimensionally stable construction. The valve body is in two parts, assembled by means of a standard clamp and sealed with a standard gasket. The self draining design of the lower valve body enables flushing of the product. Ribbed construction of the stainless steel disc resists heavy pressure hammer, minimize the resistance to flow and also serves as a guide to the valve plug. All seats and seals are made from FDA approved materials.

Above picture shows the default configuration. Horizontal positions are also permitted. The four guide legs of the valve ensure good alignment.

Technical Specification

· Max. Pressure: 10bar (145psi)
· Opening pressure: 0.3bar (DN25) 0.2bar (DN32-40) 0.1bar (DN50-100). The opening pressure can be set as customers require.
· Working temperature: 14 ~ 248° F (-10 ~ 120° C), EPDM

Technical Parameters
Steel materialProduct wetted partsAISI 316L / 304
(1.4404 / 1.4306)Provided with material inspection report
Other steel partsAISI 304
Seal materialStandardEPDMAll seal materials comply with the FDA 21CFR117.2600
OptionsVMQ / VITON
PressureWorking pressure≤ 10bar (145psi)
TemperatureWorking temperatureEPDM: 14 ~ 248° F (-10 ~ 120° C)
VMQ: -58 ~ 356° F (-50 ~ +180° C)
FPM: -22 ~ 446° F (-30 ~ +230° C)
Sterilization temperature150° C (Max. 20 min)
Surface treatmentInside surface treatmentRa 16 ~ 32µ In (0.4 ~ 0.8µ M)
Outside surface treatmentRa 32 ~ 64µ In (0.8 ~ 1.6µ M)
ConnectionThe welding diameterWelding end:
DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
End connections: Butt-welded, sanitary clamp, male and female threaded, flanged, etc.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Structure: Elevated
Function: Ddcv Double Lobe
Application: Industrial Usage
Connection Form: Clamp
Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
