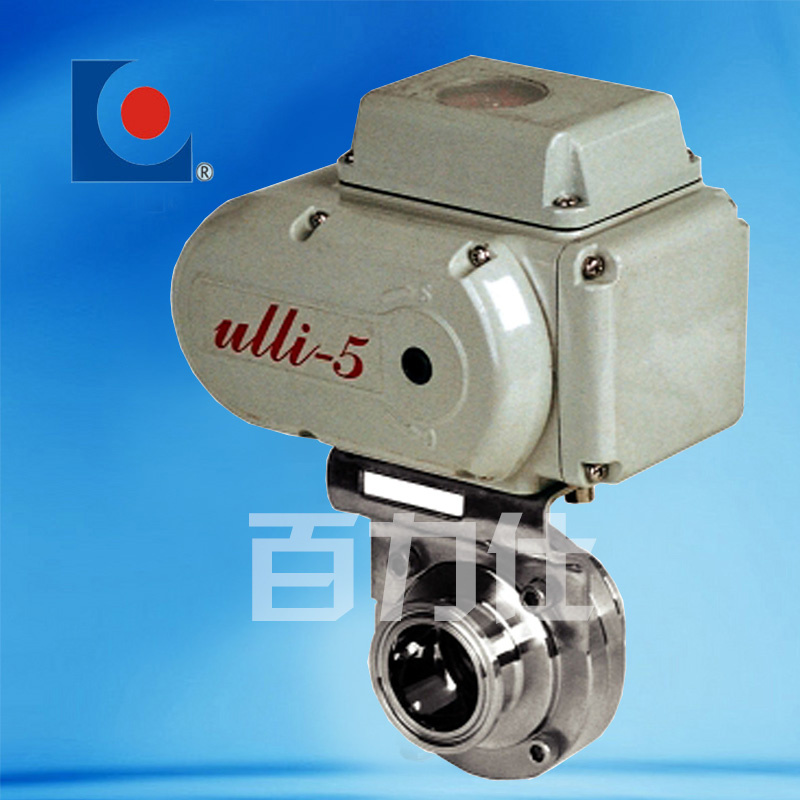

Electric Butterfly Valve
1.Technical parameters of the products
Valve size :DN40~DN200
Body ratings:PN1.6MPa
Body connections:Wafer type
Body structure: Central line Soft seal structure of axis
Action time:3S, 4S, 7S optional(0-90°)
Power supply:AC220V
Control signal:4~20mA, 0~5V
Output signal:4~20mA, 0~5V
Operating pressure:PN1.6Mpa, PN2.5Mpa
Medium temperature:≤180°C(The higher temperature resistance in reserve)
Ambient temperature:≤50°C
Flow coefficient(CV):Please download the data on our website (The flow coefficient
depends on the flow requirements of the customer.)
Applicable medium :Water, oil, gas.
Dead zone:0.5%
Repeatability error:0.5%
Body material:SUS304 SUS316 WCB
| Size | O | G | A | L | H | H1 |
| DN15 | 78 | 34X1/8 | 67 | 132.5 | 145 | 185 |
| DN20 | 78 | 44X1/6 | 67 | 132.5 | 145 | 185 |
| DN25 | 78 | 52X1/6 | 67 | 132.5 | 145 | 185 |
| DN32 | 85 | 58X1/6 | 74 | 132.5 | 145 | 189 |
| DN40 | 92 | 65X1/6 | 74 | 132.5 | 145 | 191 |
| DN50 | 110 | 78X1/6 | 76 | 132.5 | 145 | 198 |
| DN65 | 123 | 95X1/6 | 84 | 155 | 171 | 232 |
| DN80 | 138 | 110X1/4 | 89 | 155 | 171 | 240 |
| DN100 | 158 | 130X1/4 | 98 | 155 | 171 | 250 |
| DN125 | 185 | 160X1/4 | 110 | 155 | 171 | 265 |
| DN150 | 215 | 190X1/4 | 120 | 208 | 185 | 290 |
